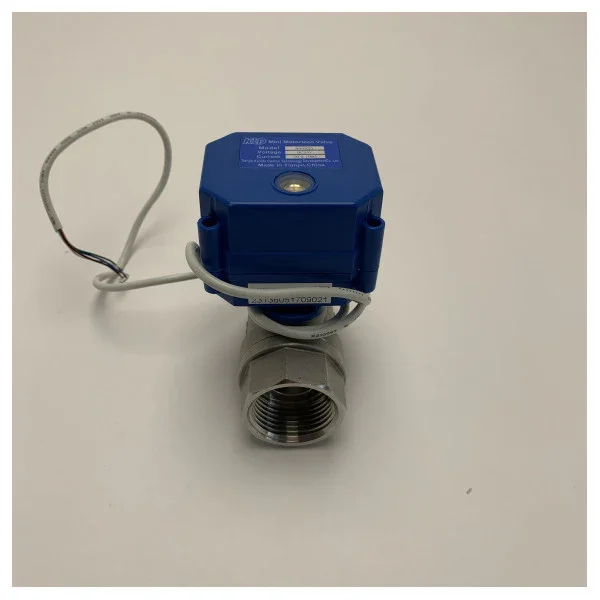

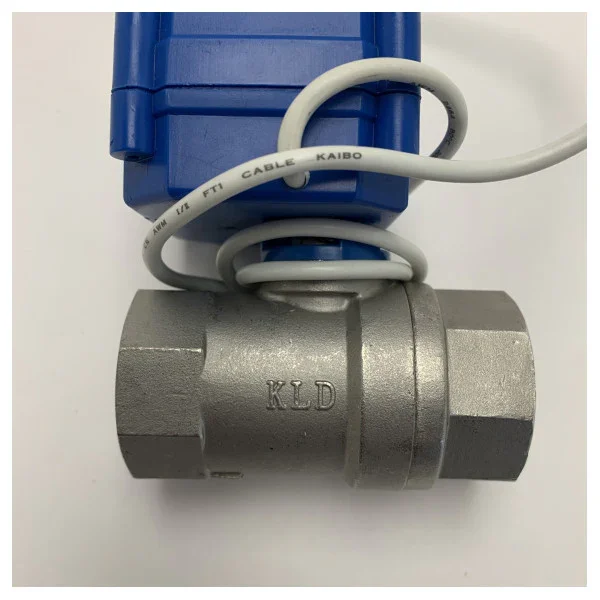

Vetus Motorised Ball Valve DN25 (1 inch), 24V – The Reliable Solution

Product Description

Make the management of your ship's valves easier and safer with the Vetus Electric Motorised Ball Valve DN25 (1 inch) 24V. This innovative ball valve is the ideal solution for remotely operating sea valves and other shut-off devices in hard-to-reach places. It combines a robust construction with high torque for optimal reliability.

Main Features:

• Extremely High Reliability: Thanks to a combination of an aluminium housing, metal gears, and a stainless steel (AISI 316) ball valve.
• High Torque: With a maximum torque of 40 Nm, the chance of jamming is minimized, even with valves that are closed for long periods.
• Ignition Protected: Complies with the ISO 8846 Marine standard, making it safe to use in the engine room without explosion risk.
• Minimal Maintenance: The drive is lubricated for life under normal conditions.
• Versatile: Suitable for salt water, fresh water, and diesel fuel.
• Thermal Protection: Includes thermal overload protection.

Specifications (DN25 / 1 inch version):

• Voltage: 24 Volt
• Internal Thread (G): 1 inch (DN25)
• Max. Torque: 40 Nm
• Current (Amperes): 1.2 A
• Length: 130 mm
• Height: 185 mm
• Weight: 2.8 kg
• Ambient Temperature: -20 degrees C to +45 degrees C
• Ball Valve Material: AISI 316

Application:

This Vetus ball valve is perfect for water sports and professional shipping where reliable, remotely operated shut-off devices are needed. Operation can take place remotely via a separately available switch (such as the ELVPAN24) or a wastewater control panel (WWCP).

Invest in convenience and safety on board with the Vetus Motorised Ball Valve. Order now and benefit from a durable solution for your fluid management.
