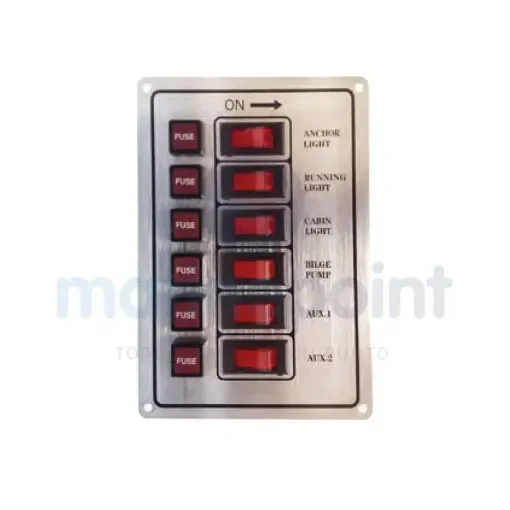

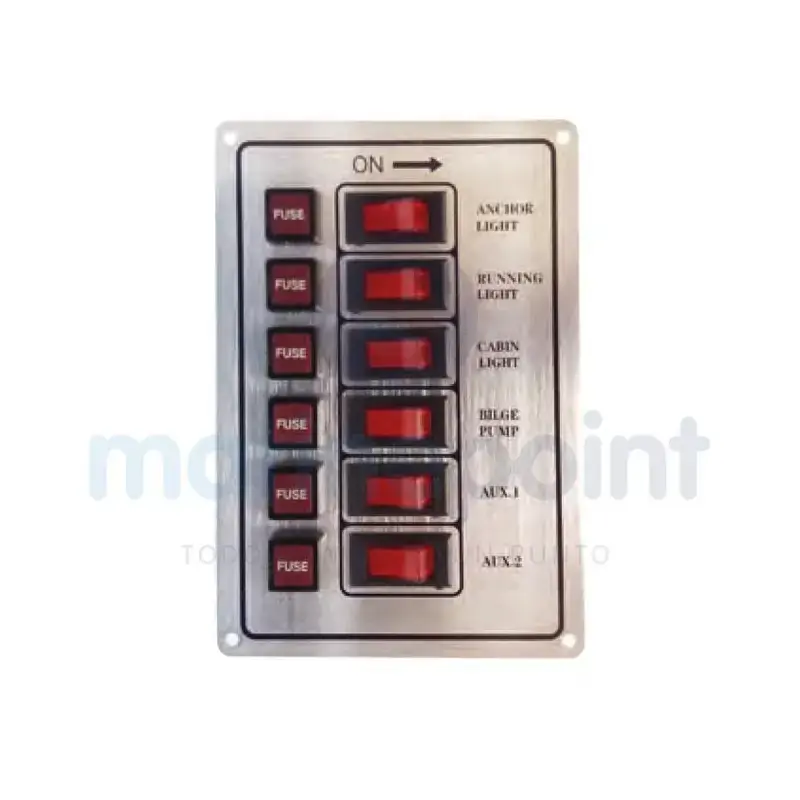

This vertical electrical panel is designed to centralize and simplify the control of the different electrical systems onboard recreational boats, sailboats, and yachts.
Technical Features
- Material: Anodized aluminum in silver color, resistant to marine corrosion.
- Switches: 6 units, with red LED backlighting for quick identification of active circuits (12V, up to 15A per switch).
- Protection: Includes fuse holder for standard AGC and SFE fuses, facilitating replacement.
- Dimensions: 115 x 167 mm. Compact design easily fitting control boards or consoles.
Advantages
- Facilitates the safe operation of electrical devices onboard.
- LED lighting allows simple visual control, even in low visibility conditions.
- Specifically manufactured for marine environment, resistant to salt and humidity.
Common Applications
- Control of bilge pumps, navigation lights, freshwater systems, radio, and auxiliary devices.
- Ideal for replacements and upgrades in boat electrical systems.
Installation and Maintenance
- Easy surface mounting. Recommended use of proper terminals and marine wiring to avoid oxidation problems and ensure maximum electrical safety.
- It is recommended to regularly check the fuse status and clean the panel to avoid salt accumulation.
Technical Specifications Table
| Nominal Voltage | 12V |
|---|
| Switches | 6 (RED LED) |
|---|
| Maximum Current | 15A per channel |
|---|
| Compatible Fuses | AGC / SFE |
|---|
| Material | Anodized Aluminum |
|---|
| Dimensions | 115 x 167 mm |
|---|
