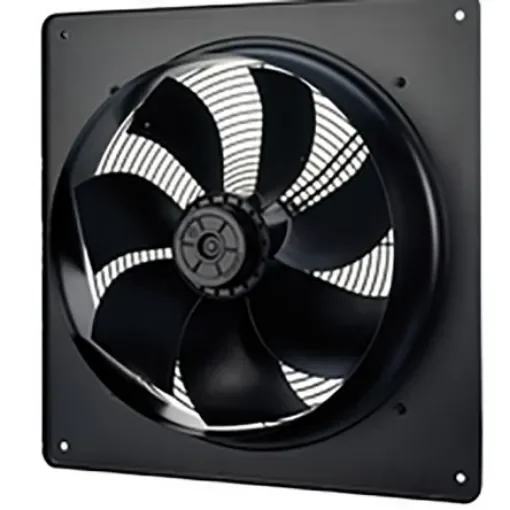

Vent-Axia VSP50014 VSP Square Wall Mounted Plate Fan, 2.47m³/s, 51dB(A), Lightweight, Thermal Overload Protection, Duct

Vent-Axia Plate Mounted Sickle FanThe Vent-Axia plate mounted sickle fan has an airflow of 2.47m³/s and a supply voltage rating of 230VAC. It is the latest innovation that incorporates the latest FE2 Owlett impeller. This offers improved performance over the previous ranges with up to 7dB (A) reduction in sound and up to 15% improvement in efficiency. The advanced blade design, matched to a purpose-designed external rotor motor ensures unrivalled reliability and controllability. It is available with a height of 655mm, width of 655mm and depth of 226mm.Features and BenefitsFan speed of 1230rpm Noise level of 51dB(A) Power consumption of 630W Swept impeller with aerofoil blades, winglets, and serrated trailing edge for optimum performance One-shot die-cast impeller, dynamically balanced for smoother operation Operating temperature up to 70°C External rotor motors on all models for compact efficient design All models speed controllable Guards fitted as standard on all models Thermal overload protection for motor protection Maintenance-free sealed for life bearings Epoxy paint finish AC operation Blade diameter of 517mm Direction of curve is backward Ball bearing Electronic commutation Maximum current of 13.2A Lead wire termination Lightweight 2-year guaranteeApplicationsFactories WarehousesCertificationsIP54 rated ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
