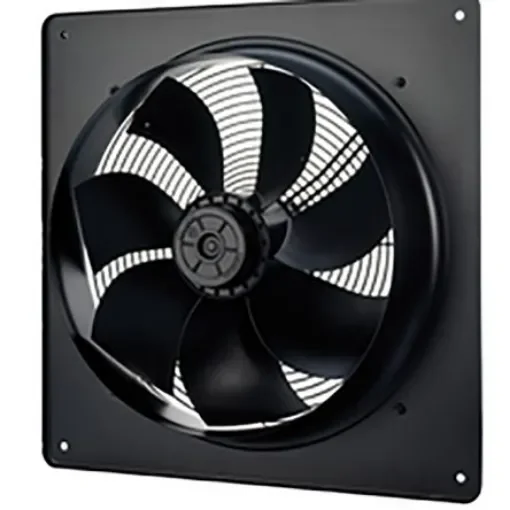

Vent-Axia VSP45034 VSP Square Wall Mounted Plate Fan, 1.97m³/s, 49dB(A), Lightweight, Thermal Overload Protection, Duct

Fan Type = Axial Plate Fan
Air Flow = 1.97m³/s
Noise Level = 49dB(A)
Mounting = Wall Mounted
Face Dimensions = 575 x 575 x 253.5mm
Depth = 253.5mm
Duct Size = 450mm
Series = VSP

Vent-Axia Plate Mounted Sickle FanThe Vent-Axia plate mounted sickle fan has an airflow of 1.97m³/s and a supply voltage rating of 400VAC. It is the latest innovation designed with the latest FE2 Owlett impeller. This offers improved performance over the previous ranges with up to 7dB (A) reduction in sound and up to 15% improvement in efficiency. The advanced blade design, matched to a purpose-designed external rotor motor ensures unrivalled reliability and controllability. It is available with a height of 575mm, width of 575mm and depth of 253.5mm.Features and BenefitsFan speed of 1350rpm Noise level of 49dB(A) Power consumption of 440W Swept impeller with aerofoil blades, winglets, and serrated trailing edge for optimum performance One-shot die-cast impeller, dynamically balanced for smoother operation Operating temperature up to 70°C External rotor motors on all models for compact efficient design All models speed controllable Guards fitted as standard on all models Maintenance-free sealed for life bearings Epoxy paint finish AC operation Blade diameter of 463mm Direction of curve is backward Ball bearing Electronic commutation Maximum current of 4.4A Lead wire termination Lightweight Thermal overload protection 2-year guaranteeApplicationsFactories WarehousesCertificationsIP54 rated ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
