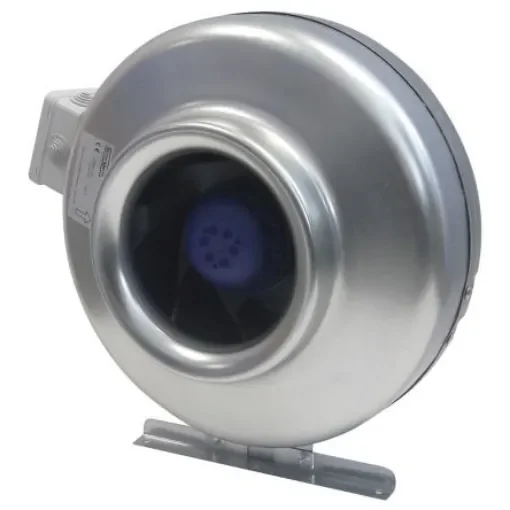

Vent-Axia SDX315 Euro Round In Line Duct Fan, 983m³/h, 2 Year Warranty, IP54 Terminal Box, Metal Impellers, Duct Size

Vent-Axia Duct FanThe Vent-Axia EURO series in-line mounting centrifugal duct fan has an airflow rate of 983m³/h and a duct diameter of 315mm. It has a supply voltage rating ranging between 220V and 240V. It is designed around an efficient backwards-curved centrifugal impeller. The in-line fan casing is constructed from pressed steel and incorporates an aerodynamically designed airflow guide vane, ensuring maximum performance from the unit whilst maintaining minimum noise levels. It is enabled with an external rotor motor providing a compact design, high-performance and low sound levels. All models are supplied with a simple mounting foot for ease of installation. The impellers are manufactured by injection moulding of a polypropylene resin. The motor and impeller are factory-matched and statically, as well as dynamically balanced in 2 planes.Features and BenefitsNoise level of 36dB (A) at 2370rpm Operating temperature ranging between -25°C and 60°C Quick connect termination Metal impellers Static pressure of 700Pa Round configurationCertificationsIP44 rated IP54 rated terminal box
