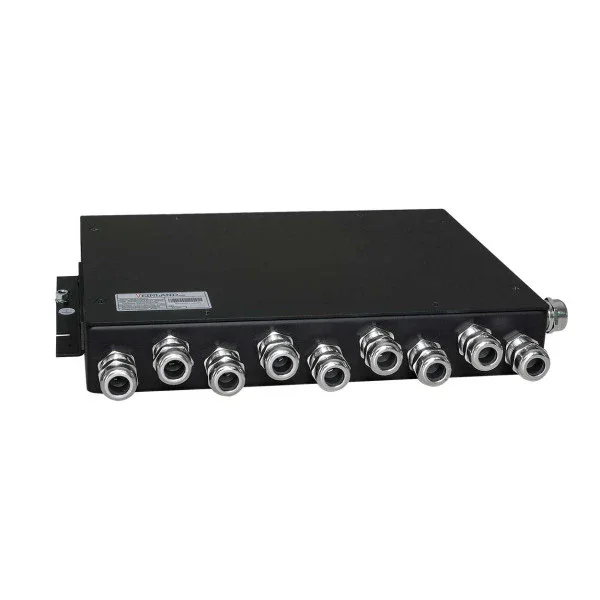

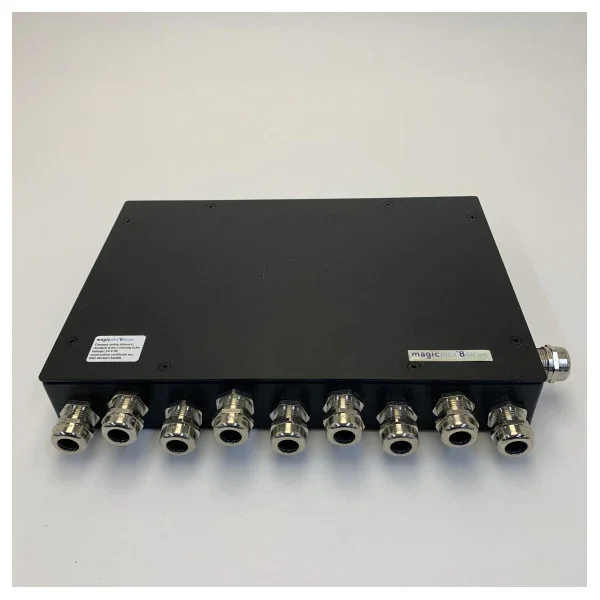

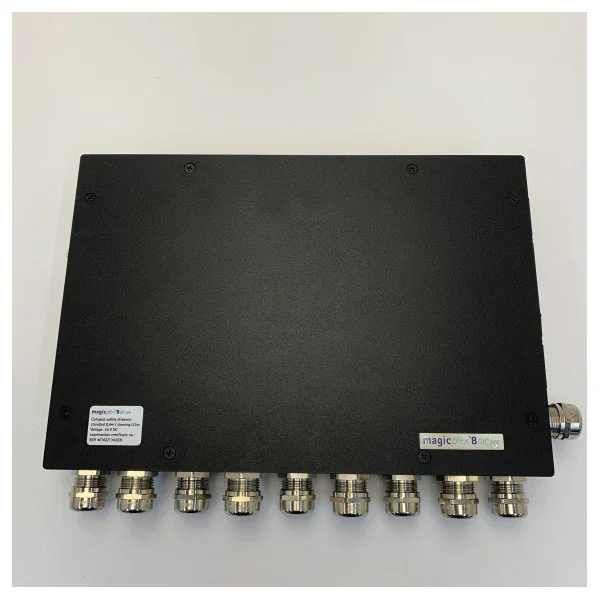

MagicPlex 8 GIC Pro: NMEA to Ethernet Converter Box
Are you looking for a reliable and powerful solution to connect and share your maritime navigation data? The MagicPlex 8 GIC Pro 8 NMEA to Ethernet Converter Box is the ideal choice for professional and demanding maritime applications. This device allows you to easily convert eight NMEA0183 inputs and two NMEA0183 outputs to an Ethernet network. This guarantees fast and error-free data transmission throughout your entire boat network.
The MagicPlex 8 GIC Pro excels in flexibility and ease of installation, which is crucial in modern shipping.
Key Features
- Eight NMEA0183 Inputs (Listeners): Connect a wide range of equipment, such as GPS, AIS, wind meters, and depth meters.
- Two NMEA0183 Outputs (Talkers): Send converted data to other NMEA devices on your network.
- Direct Ethernet Connection: Use the standard RJ45 port for direct integration into existing IP networks.
- Configuration via Web Interface: Easy management of IP settings, baud rate, and data filters via a user-friendly web browser interface.
- Full Galvanic Isolation: All NMEA inputs are galvanically isolated to prevent interference and ground loop issues in the maritime environment, ensuring the reliability of your systems.
Specifications in Text
The MagicPlex 8 GIC Pro operates with a wide power supply voltage of 9 to 30 VDC, making it suitable for almost any boat or ship. The device supports a high number of independent NMEA inputs, specifically eight, each of which can be configured separately for the correct baud rate. The two NMEA outputs (talkers) provide extra flexibility. The converter is equipped with a 10/100 Mbit Ethernet port. The data is accessible via TCP/IP or UDP, allowing seamless integration with various navigation software and equipment. The housing is compact and designed for easy wall mounting, with dimensions of approximately 140 x 95 x 40 mm. The operating temperature range is from -20 to +70 degrees Celsius, highlighting its robustness for harsh maritime conditions.
Why Choose the MagicPlex 8 GIC Pro?
Choose this converter box to modernise and make your navigation system future-proof. It provides a stable bridge between older NMEA equipment and the flexibility of modern Ethernet-based systems. Ideal for sharing critical navigation data with PCs, tablets, and other network devices on board. Maximise the connectivity and reliability of your onboard electronics with the MagicPlex 8 GIC Pro.
