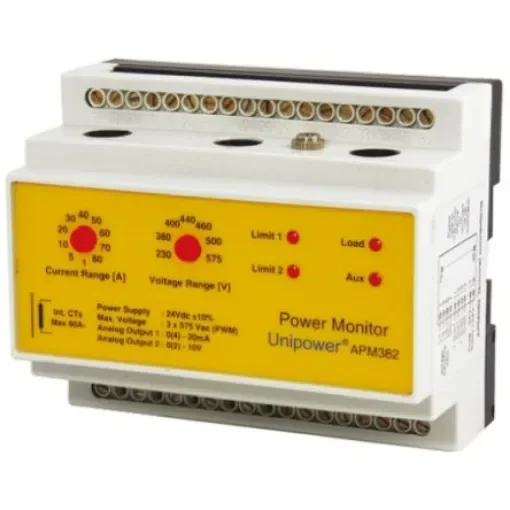

Unipower 130 A Motor Load Monitor, 24 V dc - APM382
Monitor motor loads with precision using the Unipower 130A Load Monitor, designed for reliable performance.
Manufacturer part number: APM382
Current Rating = 130 A
Motor Protection Component = Load Monitor
Supply Voltage = 24 V dc
Series = APM
Output = 2
Overall Length = 102mm
Overall Width = 86mm
Overall Depth = 58mm
Minimum Operating Temperature = -15°C
Maximum Operating Temperature = +50°C
Enclosure Type = Lexan UL94V-0 (Upper), Noryl UL94V-0 (Lower)mm
APM382 - Analogue Load Monitor. The APM382 is a combined electronic power measurement transducer and load monitor that measures power in kW on 3-phased asymmetric loads, including frequency inverter. Measures after frequency inverters; PWM 10Hz - 1kHz 10 current measuring ranges up to 80A internally Digital scaling of the selected range (Zoom) Programmable filter function (analogue and digital) 2 independent alarm limits plus dP/dt (shock load) alarm Alarm inhibit inputs and external reset input 0(4)-20mA and 0(2)-10V analogue outputs Galvanic isolation between mains net and I/O Setup of parameters via PC with software 382Mon Optocoupled alarm outputs An external display (DCU D382; Stock-no.: ; 793-4124 793-4124 ) can be connect
