Key Features:
- Engine Compatibility: Designed for outboard engines up to 55 hp, excluding EVINRUDE E-TEC™ 50, for which T85, T71FC, or T91 are recommended.
- Cable Compatibility: Compatible with Morse cables C230/231, Teleflex, Compact, and TX805.
- Construction: Made from materials resistant to marine corrosion.
- Friction Adjustment: Externally adjustable standard friction.
- Mounting Options: Offers four different mounting positions to facilitate optimal cable exit.
- Steering Wheel Compatibility: Supports steering wheels up to 380 mm in diameter.
Technical Specifications:
- Installation Angle: 90°
- Steering Turns: Approximately 2.5 turns from lock to lock.
- Actuation Stroke: 230 mm
- Minimum Cable Bend Radius: 200 mm
- Maximum Working Load: 1200 N (120 kg)
- Compliance: Exceeds EN 29775 safety standards.
Materials:
- Cable End: Stainless steel, compliant with ABYC P17 safety standards.
- Housing: Constructed from corrosion-resistant materials suitable for marine environments.
Dimensions:
- Steering Wheel Diameter: Up to 380 mm
- Minimum Cable Bend Radius: 200 mm
Compatibility Information:
- Engine Compatibility: Suitable for outboard engines up to 55 hp, excluding EVINRUDE E-TEC™ 50.
- Cable Compatibility: Compatible with Morse cables C230/231, Teleflex, Compact, and TX805.
Additional Details:

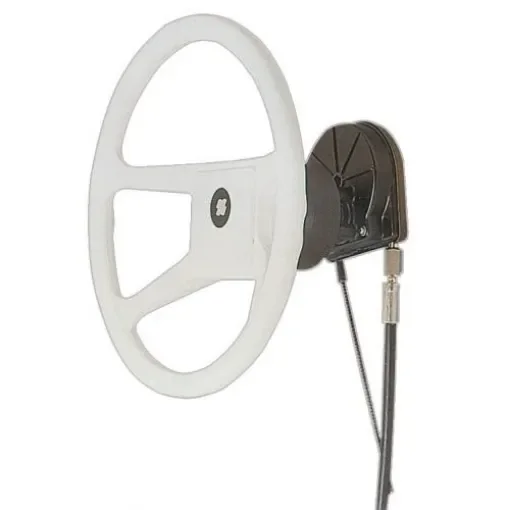

- Steering Wheel and Cables: The T67 steering system includes the housing with clutch and a black 90° cap. Steering wheel and M58 steering cables are optional and sold separately.
