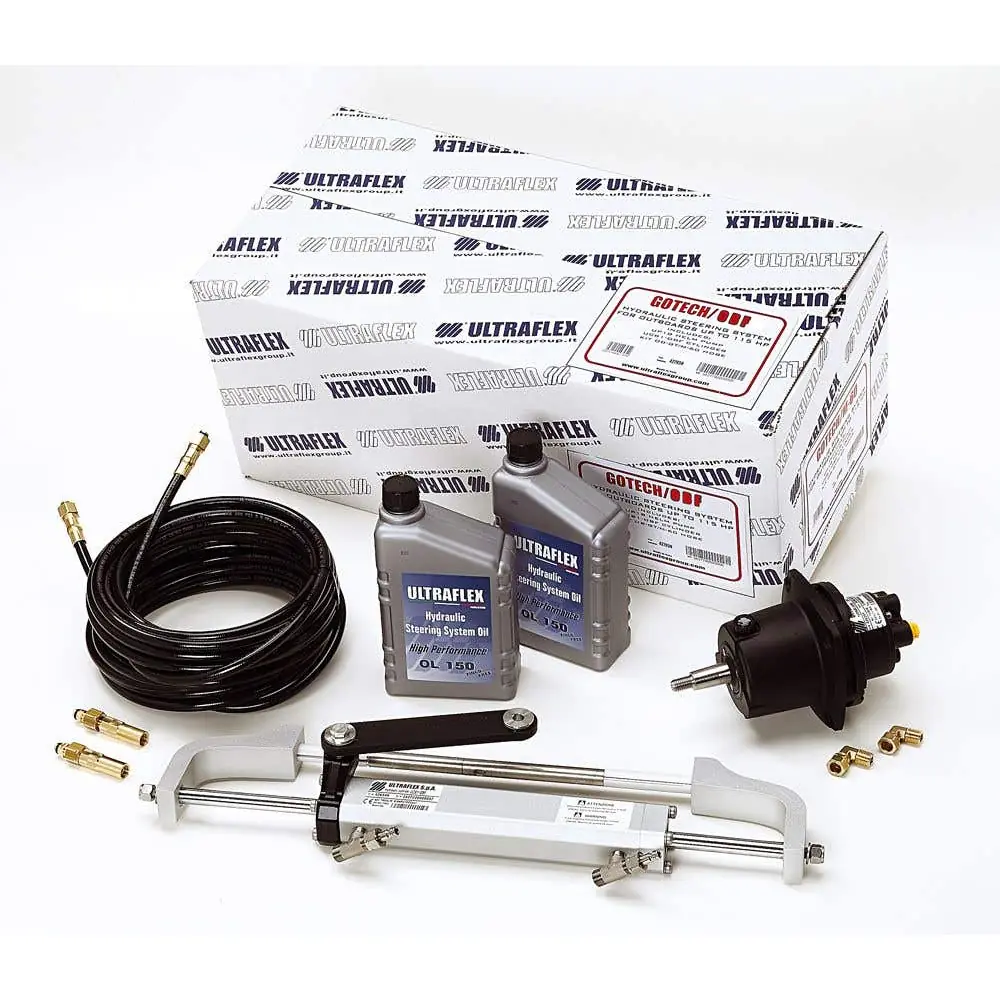

The Ultraflex Gotech Hydraulic Steering System is engineered for outboard single engines up to 115 horsepower, offering precise and responsive steering control. This system is compliant with EU 95/25 and ISO 10592 standards, ensuring reliability and safety.
- Semi-Recessed Helm Pump (UP18): Designed for intermediate mounting, this pump features a built-in check valve and relief valve, delivering 18 cc per revolution with a 55-bar pressure. It supports steering wheels up to 508 mm in diameter.
- Front Mount Outboard Cylinder (UC81-OBF): This balanced cylinder has an 81 cc volume, providing a thrust of 222 kg and a stroke of 186 mm. It is compatible with 3/8" connections.
- Flexible Hydraulic Hoses: The kit includes two 6-meter hoses with a 1/4" diameter, which can be shortened as needed. These hoses come with reusable terminal connectors for easy installation.
- Hydraulic Oil: Two liters of hydraulic oil are included to ensure optimal system performance.
Technical Specifications
- Helm Pump (UP18): Displacement: 18 cc/revolution, Pressure: 55 bar, Maximum Steering Wheel Diameter: 508 mm, Mounting: Semi-recessed, Weight: 3.6 kg
- Outboard Cylinder (UC81-OBF): Volume: 81 cc, Thrust: 222 kg, Stroke: 186 mm, Connection: 3/8"
- Hoses: Length: 6 meters each, Diameter: 1/4", Reusability: Reusable terminal connectors
- Hydraulic Oil: Quantity: 2 liters
Materials
- Helm Pump Housing: Corrosion-proof composite material
- Cylinder Components: Durable materials suitable for marine environments
- Hoses and Fittings: High-quality materials ensuring leak-proof connections
Compatibility Information
This steering system is specifically designed for outboard single engines up to 115 horsepower. It is compatible with steering wheels up to 508 mm in diameter and is suitable for various boat types requiring precise steering control.
