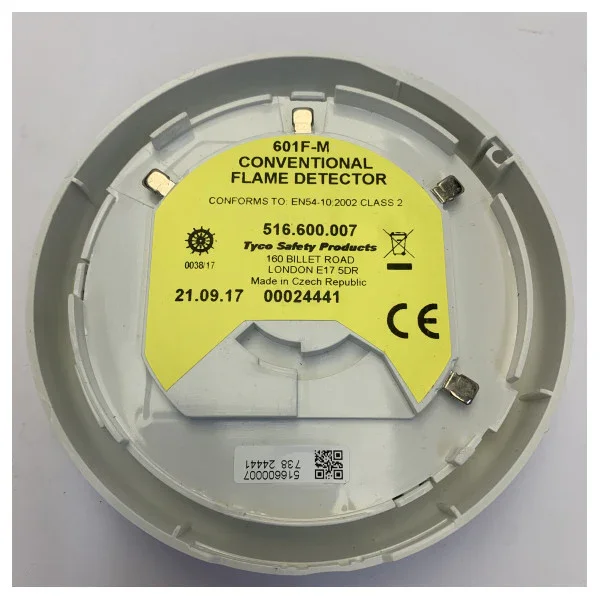

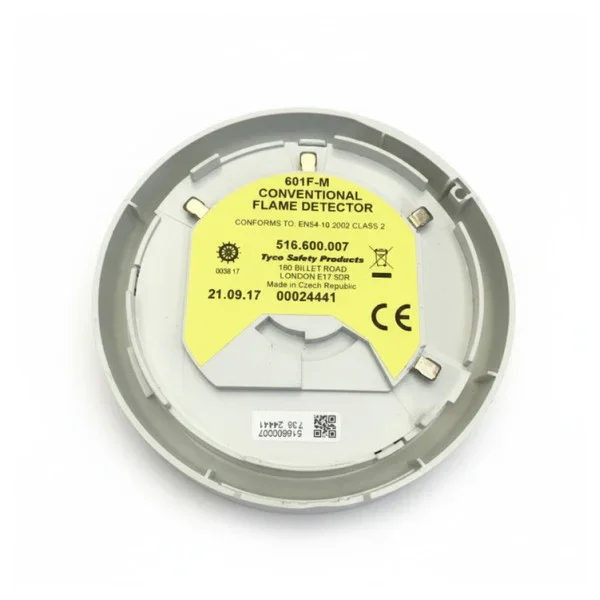

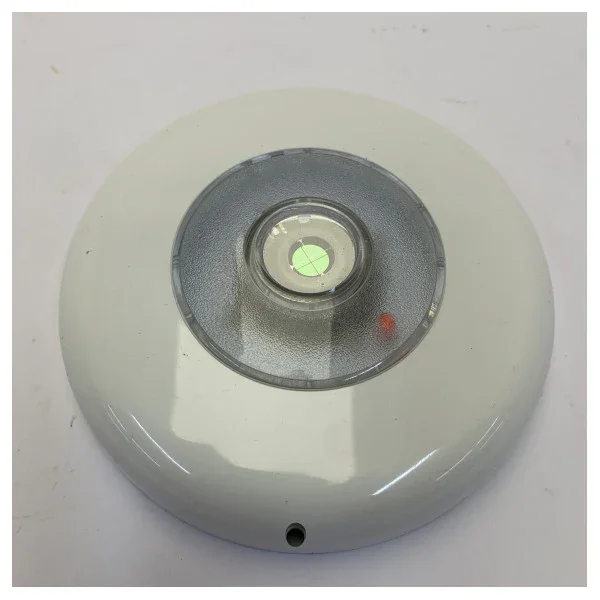

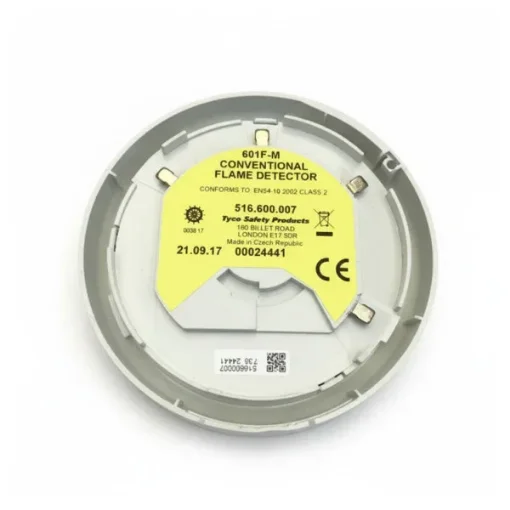

Tyco Marine Fire Detector White - 601F-M
The Tyco 601F-M is a high-quality conventional flame detector specifically designed for the harsh conditions within the maritime sector. This white detector provides a reliable solution for detecting fires involving liquids or gases that produce rapid flames with minimal smoke development.
Thanks to the advanced optical sensors, the Tyco 601F-M responds quickly to infrared radiation from flames, while false alarms from sunlight or artificial light are kept to a minimum. This makes it an essential component of fire safety on board ships, offshore platforms, and other maritime installations.
Key Features and Benefits
- Fast detection: Designed to recognize flames within seconds, even before significant smoke is present.
- Maritime approval: Meets strict requirements for use at sea and is resistant to salt air and vibrations.
- Reliability: Superior technology that distinguishes between real fire sources and disturbing light sources.
- Easy installation: The compact white design fits discreetly into various ship interiors and is compatible with standard Tyco bases.
Product Specifications
The Tyco 601F-M stands out for its technical precision and durability. The detector operates at a nominal voltage of 24 Volt DC but is functional within a wide range of 15 to 28 Volt DC. In normal standby mode, the device consumes only 200 microamperes, ensuring minimal load on the system.
In the event of an alarm, the detector enters an active state where the current rises to a maximum of 45 milliamperes, depending on the control panel used. The device is made from robust white polycarbonate and weighs approximately 110 grams. With a diameter of 108 millimeters and a height of 54 millimeters, the housing is compact and sturdy.
The Tyco 601F-M operates optimally at ambient temperatures between minus 20 and plus 70 degrees Celsius. The protection rating is classified as IP44 when properly mounted, providing protection against splashing water and solid objects.
