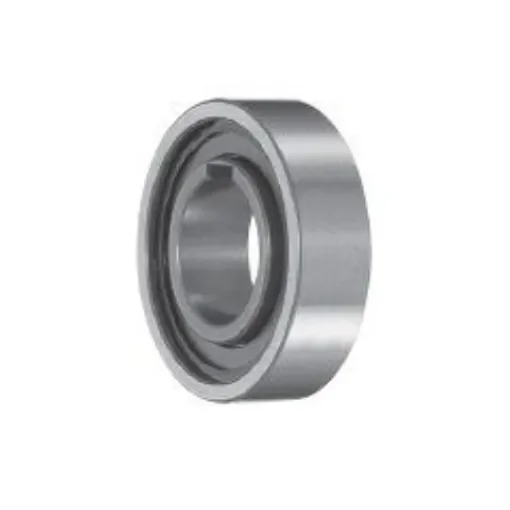

Tsubaki TSS10 Cam Clutch 10mm I.D., 30mm O.D., 9mm Race Width
The Tsubaki TSS10 Cam Clutch delivers high torque in a compact design, ideal for high-speed applications.
Manufacturer part number: TSS10
Inside Diameter = 10mm
Outside Diameter = 30mm
Torque = 12Nm
Race Width = 9mm
Series = TSS
Over-running Speed = 2300 (Outer Race) RPM, 4500 (Inner Race) RPM
Keyway = Inner Race
TSS Series Cam Clutch is designed for press fit installation with outside dimensions the same as the 62 Series ball bearing. As a sprag clutch, higher torque capacities are often higher than a similar ramp & roller design. This design provides easy handling and installation, most often with a Series 62 ball bearing located next to the TSS Cam Clutch. The TSS Series is ideal for applications that require high speed inner race overrunning in a very compact package. This series ships pre-lubricated with oil.
