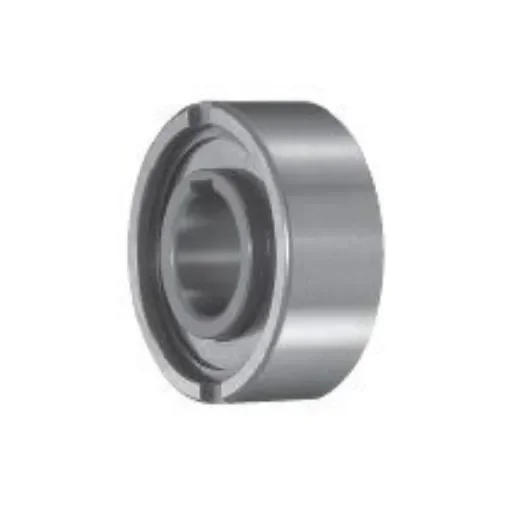

Tsubaki TFS50 Cam Clutch 50mm I.D., 110mm O.D., 40mm Race Width

Inside Diameter = 50mm
Outside Diameter = 110mm
Torque = 1124Nm
Race Width = 40mm
Series = TFS
Over-running Speed = 1000 (Inner Race) RPM, 500 (Outer Race) RPM
Keyway = Inner Race

TFS Series Cam Clutch is a sprag type clutch designed for press fit installation. Sprag type designs typically have a higher torque capacity than a similarly sized ramp & roller type clutch. TFS has two vertical keyways on the outer race to assist with locating. Outside dimensions are the same as Series 63 ball bearings. This design is ideal for general inner or outer race overrunning applications. Since the TFS Series does not include an integral bearing, installing the TFS Cam Clutch next to a bearing which handles both the axial and radial loads is the typical application. TFS Series ships pre-lubricated with oil.
