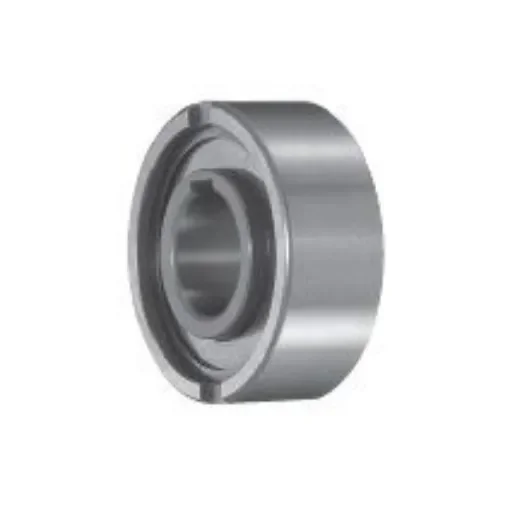

Tsubaki TFS35 Cam Clutch 35mm I.D., 80mm O.D., 31mm Race Width
The Tsubaki TFS35 Cam Clutch delivers high torque capacity for reliable overrunning applications.
Manufacturer part number: TFS35
Inside Diameter = 35mm
Outside Diameter = 80mm
Torque = 475Nm
Race Width = 31mm
Series = TFS
Over-running Speed = 1400 (Inner Race) RPM, 700 (Outer Race) RPM
Keyway = Inner Race
TFS Series Cam Clutch is a sprag type clutch designed for press fit installation. Sprag type designs typically have a higher torque capacity than a similarly sized ramp & roller type clutch. TFS has two vertical keyways on the outer race to assist with locating. Outside dimensions are the same as Series 63 ball bearings. This design is ideal for general inner or outer race overrunning applications. Since the TFS Series does not include an integral bearing, installing the TFS Cam Clutch next to a bearing which handles both the axial and radial loads is the typical application. TFS Series ships pre-lubricated with oil.
