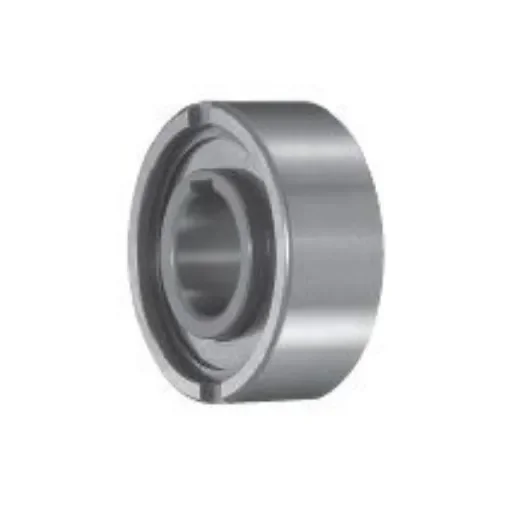

Tsubaki TFS30 Cam Clutch 30mm I.D., 72mm O.D., 27mm Race Width
The Tsubaki TFS30 Cam Clutch provides high torque capacity for reliable overrunning applications.
Manufacturer part number: TFS30
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Inside Diameter = 30mm
Outside Diameter = 72mm
Torque = 200Nm
Race Width = 27mm
Series = TFS
Over-running Speed = 1600 (Inner Race) RPM, 800 (Outer Race) RPM
Keyway = Inner Race
TFS Series Cam Clutch is a sprag type clutch designed for press fit installation. Sprag type designs typically have a higher torque capacity than a similarly sized ramp & roller type clutch. TFS has two vertical keyways on the outer race to assist with locating. Outside dimensions are the same as Series 63 ball bearings. This design is ideal for general inner or outer race overrunning applications. Since the TFS Series does not include an integral bearing, installing the TFS Cam Clutch next to a bearing which handles both the axial and radial loads is the typical application. TFS Series ships pre-lubricated with oil.
