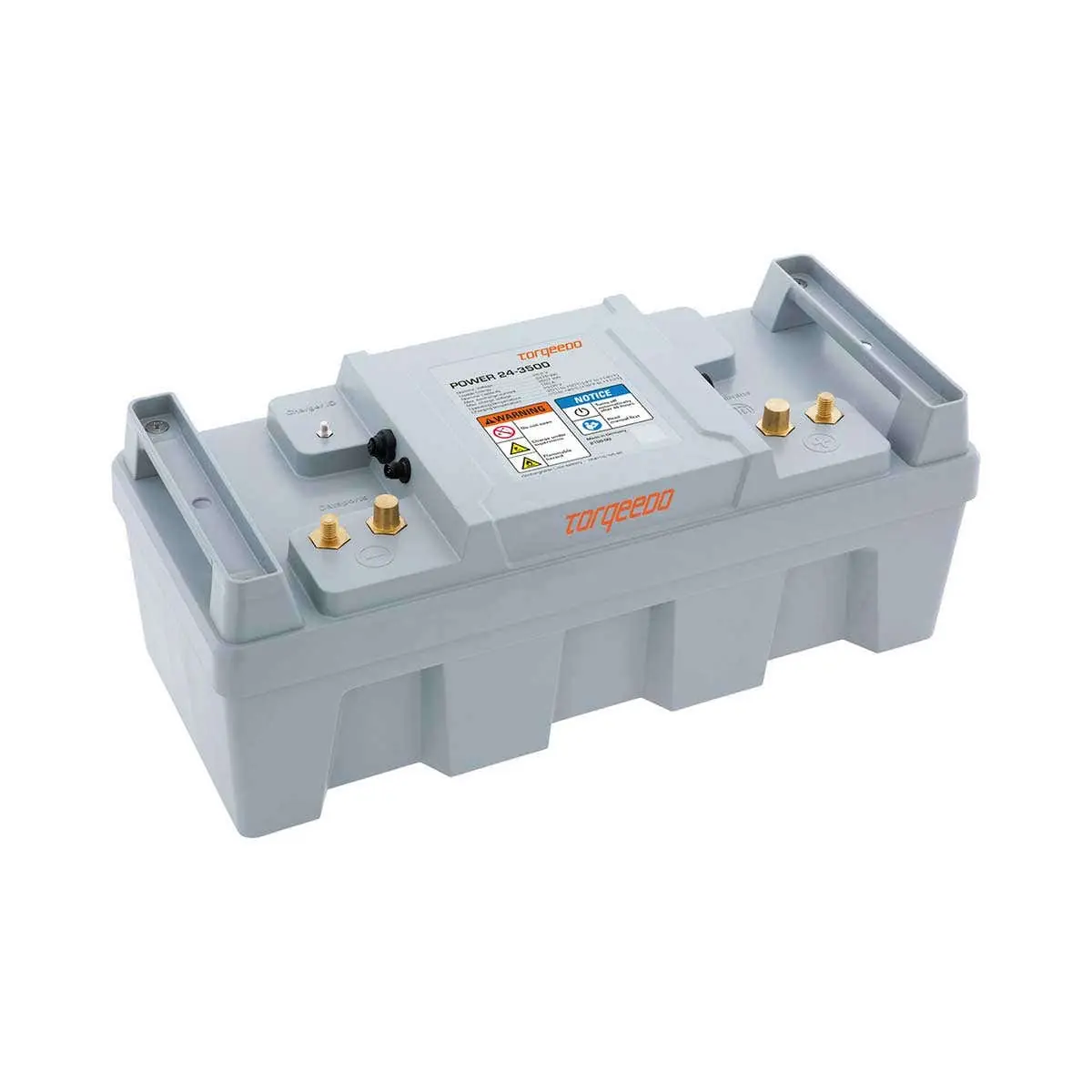

The Power 24-3500 is a high-performance lithium battery designed for Torqeedo's Cruise series motors and onboard power supply. It offers a substantial capacity of 3,679 Wh, providing reliable and efficient energy storage for various marine applications.
- High Capacity: 3,679 Wh, ensuring extended operational time for Cruise series motors.
- Energy Density: 145 Wh/kg, delivering efficient energy storage with a compact design.
- Lightweight Design: Weighs only 25.4 kg, making it up to 70% lighter than traditional AGM or gel batteries.
- Fast Charging: Fully recharges in approximately 12 hours with the standard 350 W charger; an optional 1,700 W fast charger reduces charging time to under 2 hours.
- Waterproof: IP67 rating, allowing submersion up to 1 meter for 30 minutes without damage.
- Comprehensive Safety System: Includes protection against overcharging, short circuits, deep discharge, polarity reversal, overheating, and submersion.
Technical Specifications:
- Nominal Voltage: 25.2 V
- Final Discharge Voltage: 21.0 V
- Nominal Charge: 139.2 Ah
- Maximum Discharge Rate: 180 A
- Maximum Discharge Power at Nominal Voltage: 4,660 W
- Dimensions: 577.5 mm (L) x 218.5 mm (H) x 253.5 mm (W)
- Battery Chemistry: Li-NCA (Lithium Nickel Cobalt Aluminum Oxide)
- Cycle Lifetime: Approximately 800 cycles with 100% discharge depth at 25°C, resulting in a capacity loss of about 25% over the battery's lifespan.
- Average Annual Capacity Loss: Approximately 4% at 25°C ambient temperature.
- Operating Temperature Range: Cells operate between -20°C and +55°C; charging is safe between 0°C and +45°C.
- Storage Temperature Range: -30°C to +50°C
- Typical Storage Time at 50% State of Charge: Up to 1 year when switched off.
- Maximum Quick Charge: 50 A, allowing charging time of less than 1.2 hours.
- Number of Cells: 336
- Cell Housing: Steel cylinder safety cells
- Capacity per Cell: 3 Ah
- Nominal Voltage per Cell: 3.65 V
- Cell Connection: 7s48p
Materials:
- Cell Housing: Steel cylinders for enhanced safety
- Battery Chemistry: Lithium Nickel Cobalt Aluminum Oxide (Li-NCA)
Compatibility Information:
The Power 24-3500 is specifically designed for use with Torqeedo's Cruise series motors, including models such as Cruise 3.0 RL, Cruise 3.0 RS, Cruise 3.0 TL, and Cruise 3.0 TS. It can also serve as an onboard power supply for other marine applications. For 24 V systems, a single unit is sufficient; for 48 V systems, two units connected in series are required.
