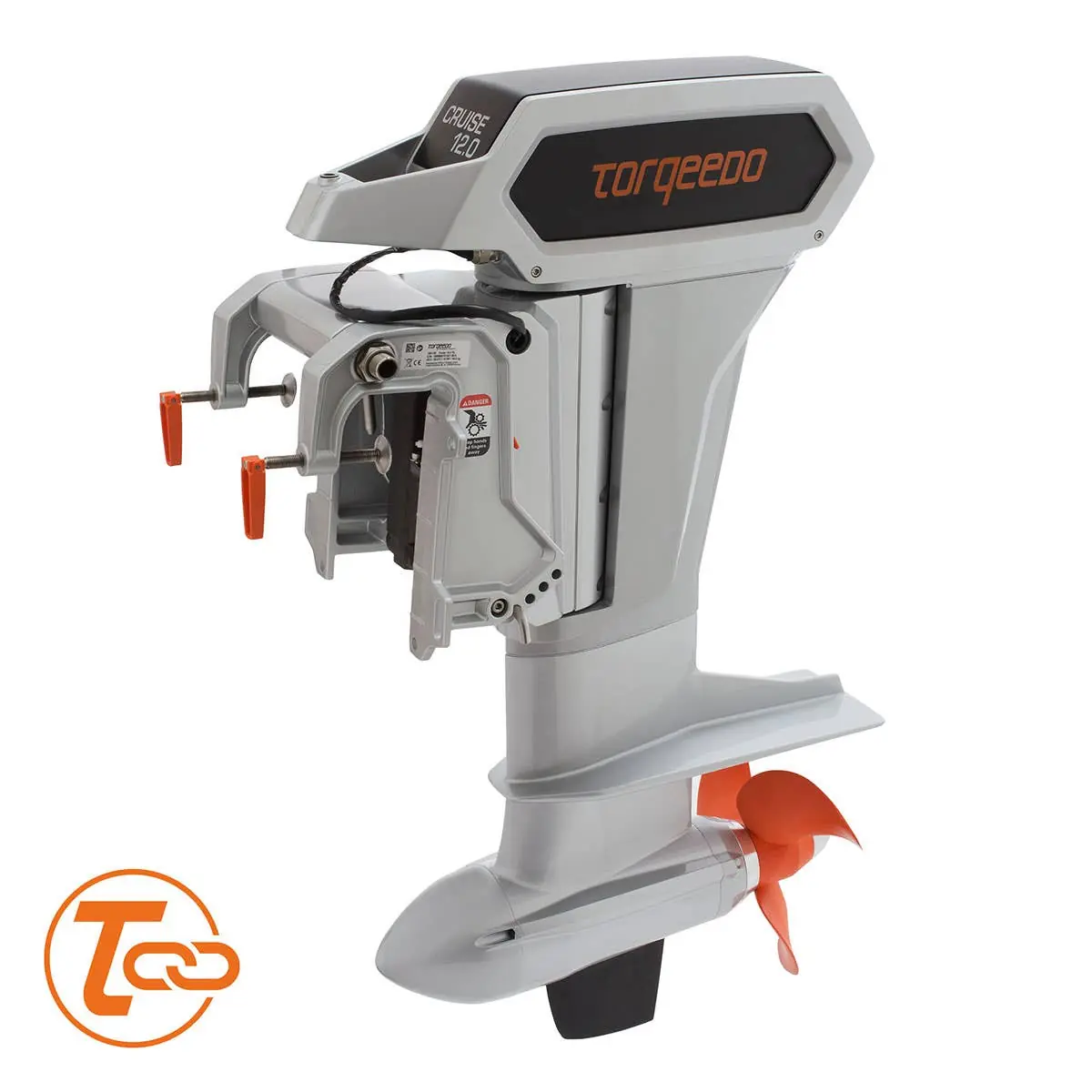

The Torqeedo Cruise 12.0 R TorqLink Electric Motor is a high-performance outboard motor designed for motorboats and sailboats up to 12 tons. It offers a continuous power output of 12 kW, equivalent to a 25-horsepower combustion engine, ensuring robust propulsion for various marine applications.
- TorqLink Data Interface: Enables fast data exchange between TorqLink components without the need for a gateway, facilitating seamless communication within the system.
- Electric Tilting Device: Provides comfortable operation with an electric tilt function, allowing for easy adjustment of the motor's angle.
- Low-Voltage Design: Operates on a 48-volt system, simplifying handling and enhancing safety.
- Robust Construction: Built with corrosion-protected, seawater-proof, and fully waterproof (IP67) materials, ensuring durability in harsh marine environments.
- Battery Connection: Equipped with water-protected battery pole terminals (IP66) for connecting up to two Power 48-5000 batteries, providing flexibility in power configuration.
Technical Specifications
- Input Power: 12,000 W
- Propulsive Power: 6,720 W
- Comparable Petrol Outboards: 25 HP
- Nominal Voltage: 48 V
- Shaft Length Options: Short Shaft (S): 38.5 cm, Long Shaft (L): 51.2 cm, Extra Long Shaft (XL): 63.9 cm
- Weight: Short Shaft (S): 59.8 kg, Long Shaft (L): 61.3 kg, Extra Long Shaft (XL): 62.5 kg
- Steering: Provision to connect to standard remote steering
- Tilting Device: Electric hydraulic tilt with overload protection, offering a tilt angle of ±45°
- Trim Device: Manual, 4-step
- Integrated On-Board Computer: Yes
- Forward/Reverse Drive: Stepless
The motor features a rugged aluminum pylon with an integral fin, providing extra protection when running aground. The highest-grade seawater-proof aluminum ensures a long service life, even in the harshest conditions. Comprehensive galvanic corrosion protection is achieved through careful matching of all materials and meticulous isolation of materials with different electrochemical properties. The motor is supplied with an anode set suitable for both freshwater and saltwater environments.
Compatibility Information
The Cruise 12.0 R TorqLink is compatible with Torqeedo's Power 48-5000 batteries. It is recommended to pair the motor with two or more of these batteries for optimal performance and precise range control. Please note that when operating with only one Power 48-5000 battery, the engine power is reduced to 6 kW. For configurations requiring more than two Power 48-5000 batteries, it is advisable to contact your Torqeedo dealer for guidance.
