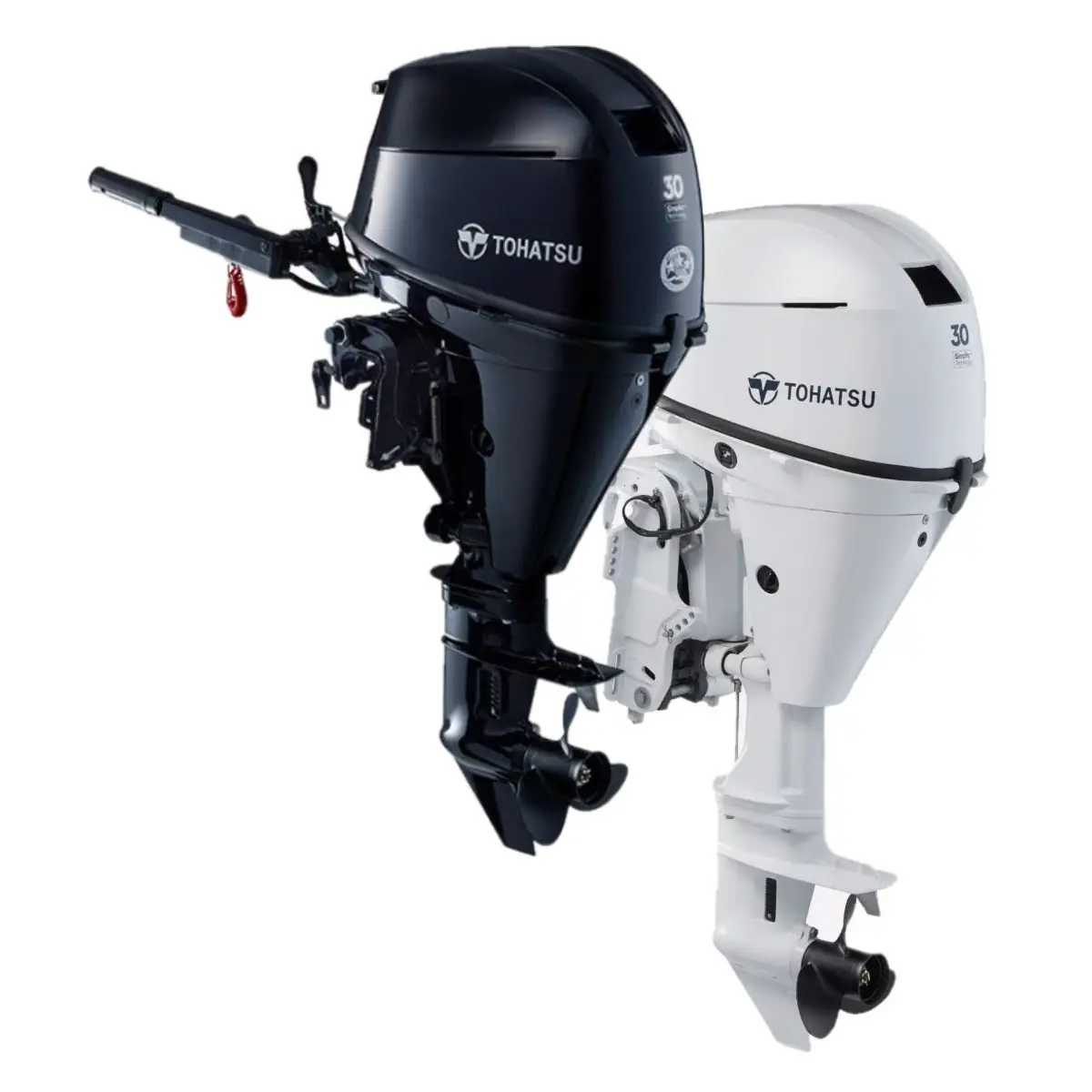

The Tohatsu MFS30D is a high-performance, eco-friendly 30 horsepower 4-stroke outboard motor, ideal for a variety of boating applications, including inflatable boats, RIBs, aluminum fishing boats, fiberglass boats, and pontoons.
- Electronic Fuel Injection (EFI): Ensures easy starting, reduced fuel consumption, and lower emissions.
- Advanced Cross-Flow Induction: Provides smooth operation and improved performance.
- Optimized Gear Ratio (2.17:1): Delivers better low-end torque and the ability to turn a higher pitch propeller for enhanced top-end performance.
- High-Output Alternator: 17.5 amp alternator ensures sufficient battery charging, even at low revs.
- Through-the-Prop Exhaust: Reduces noise and vibrations for a quieter ride.
- Thermostatically Controlled Cooling System: Maintains consistent engine temperature to prevent overheating.
- Stainless Steel Water Pump Housing: Offers outstanding durability and resistance to corrosion.
- High-Grade Marine Aluminum Alloy Construction: Provides ultimate protection against corrosion.
- Zinc Coating on Internal Water Passages: Enhances corrosion resistance.
- Built-in Fresh Water Flush System: Allows for easy maintenance and prolongs engine life.
- No-Mess Oil Filter Drip Pan: Simplifies oil changes and reduces waste.
- Variable Idle Speed Control: Offers trolling speeds of 850, 950, and 1050 RPM for precise control.
Technical Specifications
- Engine Type: 4-Stroke, 3-Cylinder
- Displacement: 500 cc (30.5 cu.in.)
- Bore x Stroke: 61 x 57 mm (2.4 x 2.25 in)
- Maximum RPM Range: 5,500 - 6,500
- Starting System: Electric or Manual
- Control Type: Remote Control or Tiller Handle
- Gear Shift: Forward - Neutral - Reverse
- Gear Ratio: 2.17:1 (12:26)
- Propeller Selection Range: 8" - 14"
- Transom Height: 15" (38 cm) or 20" (51 cm)
- Fuel Type: Unleaded Gasoline (87 Octane)
- Oil Type: NMMA Certified FC-W® 4-Stroke Oil, SAE 10W-30/40 (SF, SG, SH, SJ)
- Oil Capacity: 1.8 qt. (1.7L)
- Fuel Tank: 6.6 US Gal. (25 L) Separate Fuel Tank
- Weight: 128 lbs. (58 kg)
- Alternator Output: 12V, 210W, 17.5A
- Electronic Fuel Injection: Standard
- Digital CD Ignition System: Standard
- Start-In-Gear Protection: Standard
- Thermostat Controlled Cooling System: Standard
- Through-The-Prop Exhaust: Standard
- Overheat Buzzer: Standard
- Oil Pressure Warning: Standard
- Power Trim and Tilt: Optional
- Variable Idle Speed: Standard
- Shallow Water Drive: Optional
Materials
- Construction: High-grade marine aluminum alloy
- Water Pump Housing: Stainless steel
- Internal Water Passages: Zinc-coated for enhanced corrosion resistance
Dimensions
- Length: Approximately 1,000 mm (39.4 inches)
- Width: Approximately 400 mm (15.7 inches)
- Height: Approximately 1,200 mm (47.2 inches)
- Weight: 128 lbs. (58 kg)
