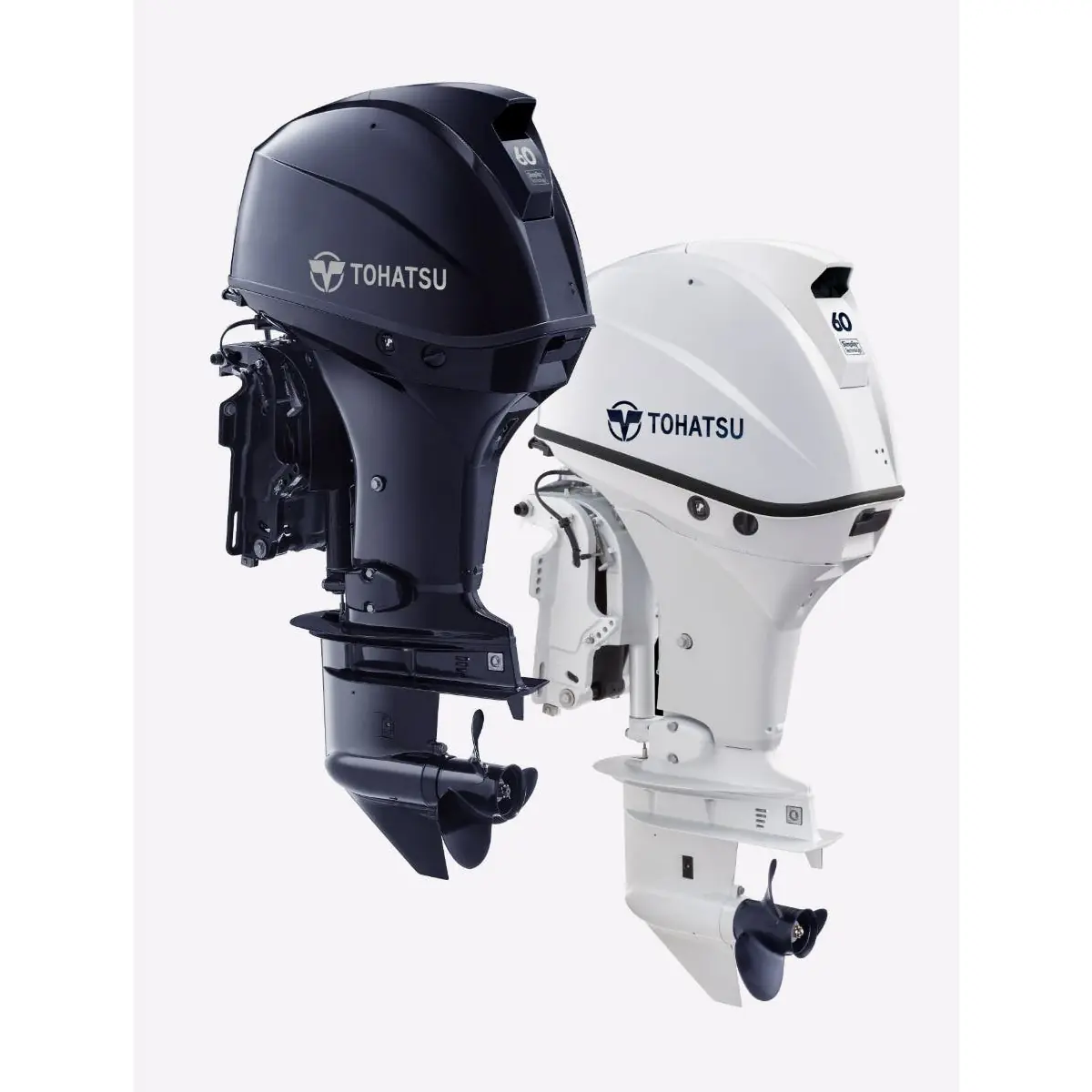

The Tohatsu MFS60A is a 60-horsepower, 4-stroke outboard engine designed for exceptional performance and reliability. It features a single overhead camshaft (SOHC) with a unique 9-valve design, providing minimal friction and a quicker, more durable throttle response. The engine utilizes electronic fuel injection (EFI) for precise fuel delivery, enhancing fuel efficiency and reducing emissions. A digital CD ignition system ensures quick starts, while a high-output 21-amp alternator supports onboard electrical systems. The gear case has a lower gear ratio, offering increased low-end torque for improved acceleration. Additional features include variable idling speed control (650 to 950 RPM), a built-in freshwater flushing system for easy maintenance, and a through-the-prop exhaust for a quieter ride. The engine is available in long (20") and ultra-long (25") shaft lengths and comes in two color options: Aqua Marine Blue and Beluga White.
Technical Specifications:
- Engine Type: 3-cylinder, 4-stroke
- Displacement: 866 cc (52.8 cu.in.)
- Bore x Stroke: 70 x 75 mm (2.76 x 2.95 in)
- Maximum RPM Range: 5,000 - 6,000 RPM
- Starting System: Electric start
- Control Type: Remote control or tiller handle
- Gear Shift: Forward - Neutral - Reverse
- Gear Ratio: 2.08:1
- Transom Height: 15", 20", or 25"
- Fuel Type: Unleaded gasoline (87 octane or higher)
- Oil Type: NMMA Certified FC-W® 4-stroke oil
- Oil Capacity: 0.63 gal. (2.4 L) with filter
- Weight: 216 lbs. (98 kg)
- Alternator Output: 12V, 252W, 21A
- Emissions Compliance: Ultra-low 3-star CARB emission approved
- Warranty: 5-year limited warranty
Materials:
- Engine Block and Components: High-grade marine aluminum alloy for corrosion resistance
- Water Pump Housing: Stainless steel liner for enhanced durability
- Oil Filter: Canister style for ease of service
Dimensions:
- Length: Varies based on shaft length (15", 20", or 25")
- Width: Approximately 40 inches
- Height: Approximately 50 inches
- Weight: 216 lbs. (98 kg)
Compatibility Information:
The Tohatsu MFS60A is compatible with various boat types, including fishing boats, pontoons, and small to medium-sized vessels. It is available in different shaft lengths (15", 20", and 25") to accommodate various transom heights. The engine is designed to run on unleaded gasoline (87 octane or higher) and is approved for use with E10 fuel, which contains up to 10% ethanol.
