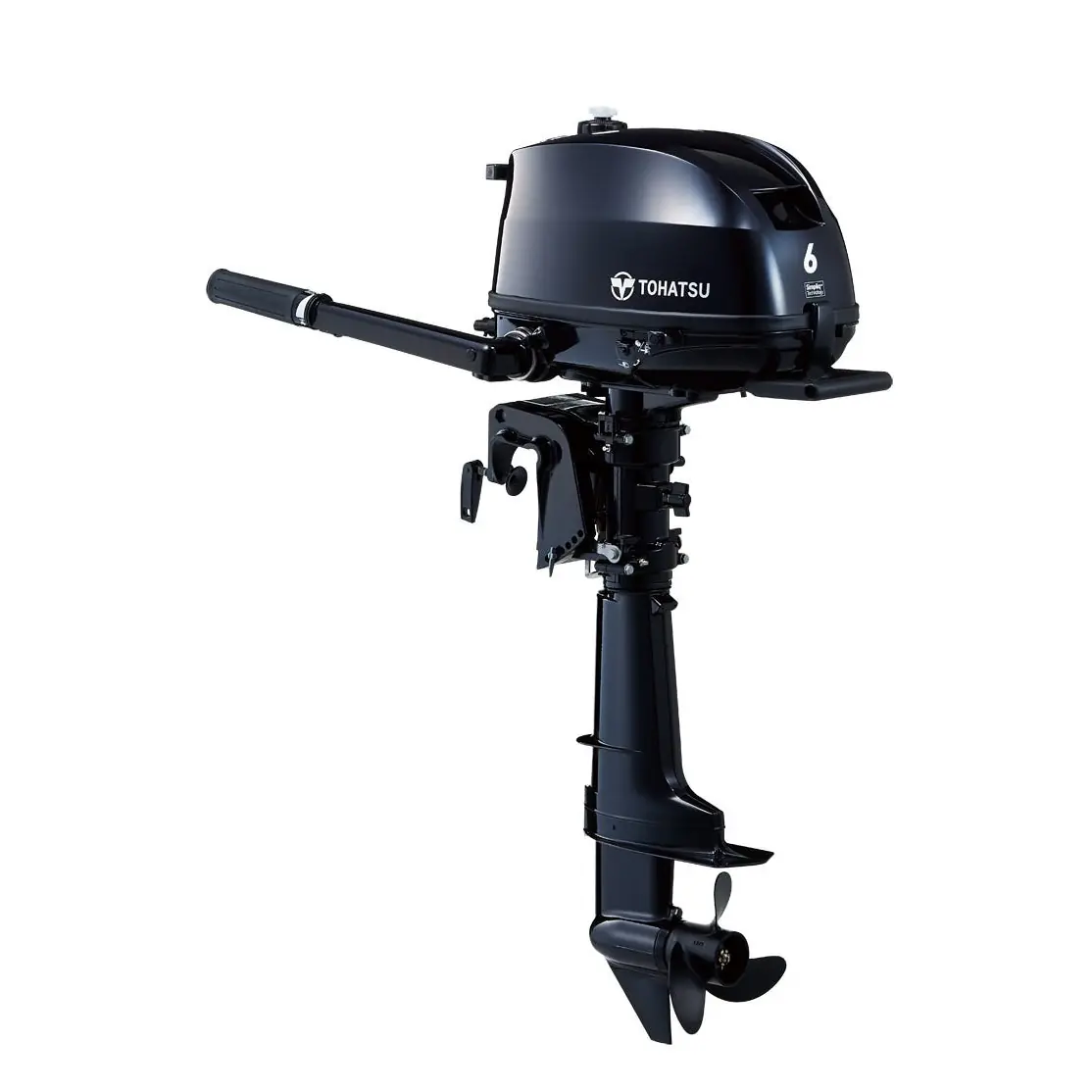

The Tohatsu 4-Stroke Outboard Motor - Sail Pro 6 HP is engineered specifically for sailing boats, offering a combination of power, reliability, and efficiency. This motor is equipped with a high-thrust sail drive propeller, a 12V, 60W, 5A charging system, and is available with long or ultra-long shaft options to suit various transom heights.
- High-Thrust Sail Drive Propeller: Designed to provide maximum thrust, even at low speeds, facilitating precise maneuvering in challenging conditions.
- 12V, 60W, 5A Charging System: Allows for recharging of onboard batteries or powering external electrical devices, ensuring continuous operation of essential equipment.
- Long and Ultra-Long Shaft Options: Available in 20" (long) and 25" (ultra-long) shaft lengths to accommodate different transom heights, preventing cavitation and maintaining efficiency.
- Lightweight and Compact Design: Weighs approximately 26.6 kg (58.6 lbs), featuring front and rear carrying handles for easy transport and setup.
- User-Friendly Operation: Equipped with a front-mounted shift lever, digital CD ignition for easy starting, and a trim adjustable in six positions for optimal performance.
- Water-Cooled with Thermostat: Ensures consistent engine temperature, enhancing longevity and reliability.
- Environmental Compliance: Meets EPA and CARB 3-Star emission standards, reflecting a commitment to reducing environmental impact.
- Extended Warranty: Tohatsu France offers a 7-year warranty for recreational use, covering up to 1,000 hours of operation, underscoring the motor's durability and quality.
Technical Specifications
- Engine Type: 4-Stroke, Single Cylinder
- Displacement: 123 cc (7.5 cu.in.)
- Bore x Stroke: 59 x 45 mm (2.32 x 1.77 in)
- Maximum RPM Range: 5,000 - 6,000
- Starter System: Manual Recoil
- Control System: Tiller Handle
- Gear Shift: Forward - Neutral - Reverse
- Gear Ratio: 2.15:1
- Propeller Selection Range: 6" - 9"
- Fuel Type: Unleaded Gasoline (87 Octane)
- Oil Type: NMMA Certified FC-W® 4-Stroke Oil SAE 10W-30/40 (SF, SG, SH, SJ)
- Oil Capacity: 450 mL (15 fl. oz.)
- Fuel Tank Capacity: 12 L (3.1 US Gal.)
- Weight: Approximately 26.6 kg (58.6 lbs)
- Alternator Output: 12V, 60W, 5A
Materials
- Construction: High-grade marine aluminum alloy for superior corrosion resistance.
- Water Pump Housing: Stainless steel liner for enhanced durability.
- Internal Water Passages: Zinc coating to prevent corrosion.
- Propeller: Aluminum for optimal performance.
Compatibility Information
- Transom Height: Compatible with sailing boats requiring 20" or 25" transom heights.
- Fuel System: Designed for use with unleaded gasoline (87 Octane).
- Oil System: Compatible with NMMA Certified FC-W® 4-Stroke Oil SAE 10W-30/40 (SF, SG, SH, SJ).
