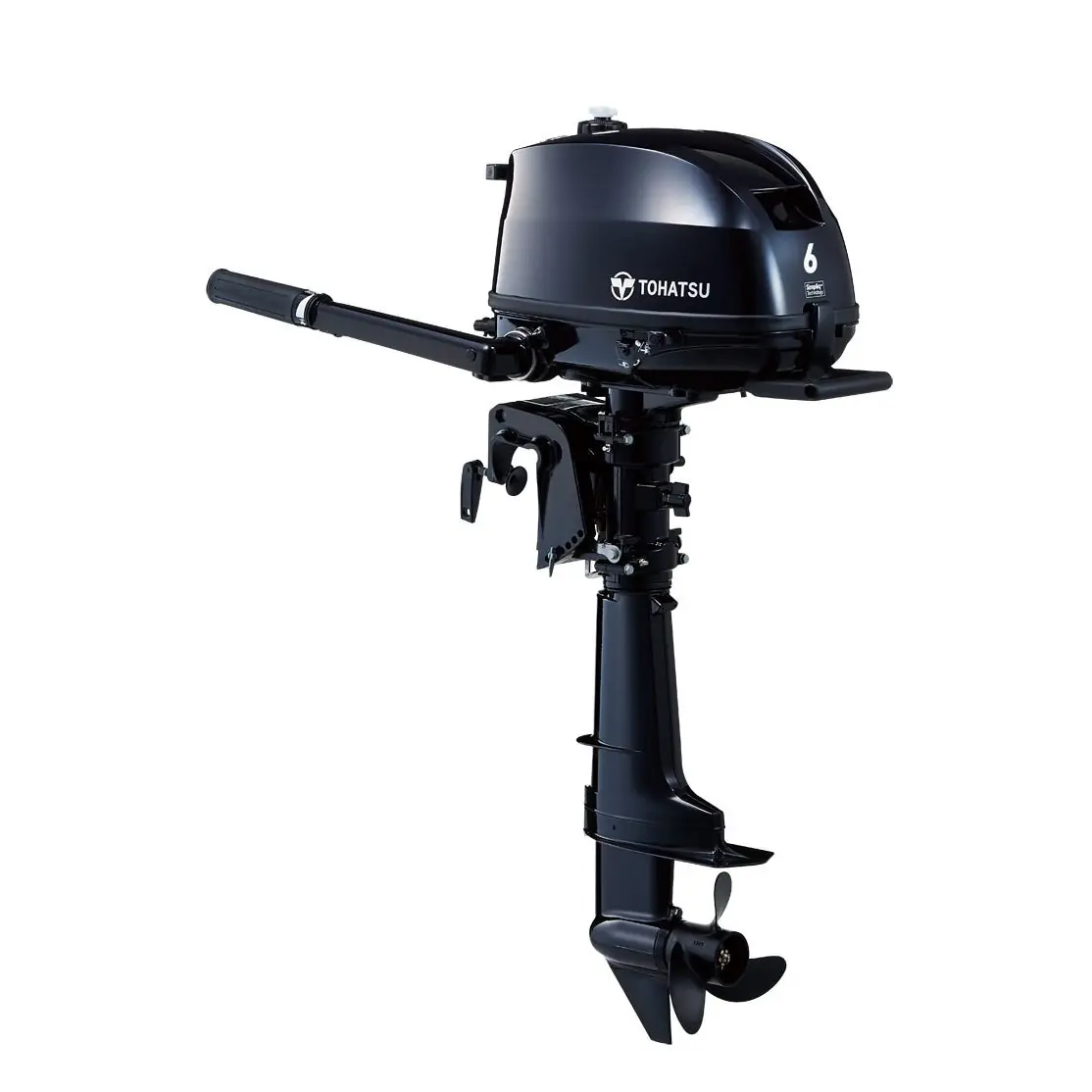

The Tohatsu 4-Stroke Outboard Motor - 6 HP is engineered to provide reliable and efficient propulsion for small crafts, including dinghies, small boats, sailboats, and small yachts. Its lightweight and compact design ensures ease of transport and storage.
- Engine Type: Single-cylinder, 4-stroke
- Output: 6 horsepower (4.4 kW)
- Displacement: 123 cc (7.5 cu.in.)
- Bore x Stroke: 59 x 45 mm (2.32 x 1.77 in)
- Maximum RPM Range: 5,000 - 6,000
- Starting System: Manual recoil starter
- Control Type: Tiller handle
- Gear Shift: Forward, Neutral, Reverse
- Gear Ratio: 2.15:1
- Propeller Selection Range: 6" - 9"
- Transom Height: 15" (38 cm), 20" (51 cm), 25" (64 cm)
- Fuel Type: Unleaded gasoline (87 Octane)
- Oil Type: NMMA Certified FC-W® 4-stroke oil, SAE 10W-30/40 (SF, SG, SH, SJ)
- Oil Capacity: 450 mL (15 fl. oz.)
- Fuel Tank: 12 L (3.1 US Gal.) separate fuel tank
- Weight: Approximately 25 kg (55 lbs.)
- Alternator Output: Optional: 12V, 60W, 5A
- Emissions Compliance: EPA and CARB 3-Star rating approved
Materials:
- Propeller: Aluminum
- Water Pump Housing: Stainless steel liner for enhanced durability
- Cooling System: Thermostatically controlled with zinc-coated internal water passages to resist corrosion
- Engine Housing: High-grade marine aluminum alloy for superior corrosion resistance
Compatibility Information:
This outboard motor is suitable for use with dinghies, small boats, sailboats, and small yachts. It is available in different shaft lengths (15", 20", and 25") to accommodate various transom heights. The "Sail Pro" model is specifically designed for sailboats, featuring a high-thrust sail drive propeller and a 12V, 60W, 5A charging system for battery charging or powering external devices.
Additional Details:
- Storage Positions: The engine can be stored in three different positions (port, front, and starboard side down) without the risk of oil spillage.
- Cooling System: Equipped with a thermostatically controlled cooling system to maintain consistent engine temperature.
- Warranty: Tohatsu offers a 7-year warranty for recreational use, covering up to 1,000 hours of operation.
