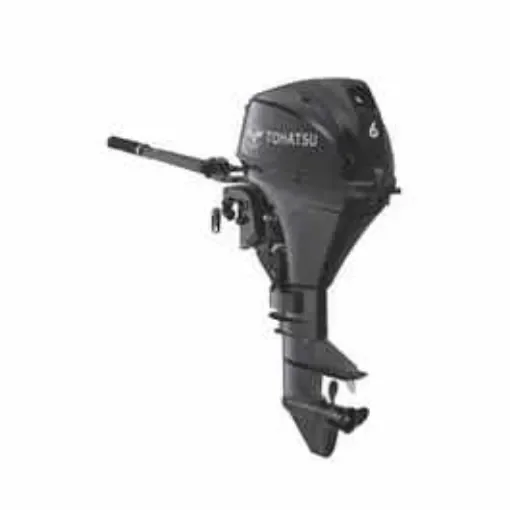

The Tohatsu 4-Stroke 6 HP Outboard Motor is a compact and reliable engine designed for small craft, offering optimal power and fuel efficiency. This twin-cylinder engine provides performance equivalent to a 9.8 HP engine, making it suitable for inflatable boats, tenders, and small sailboats.
- Lightweight and Compact Design: Weighing approximately 25 kg (55 lbs.), the engine is easy to transport and handle.
- Ergonomic Carrying Handles: Equipped with front and rear carrying handles for convenient transportation.
- 3-Way Storage Capability: Can be stored in three different positions (port, front, and starboard side down) without the risk of oil spillage.
- Front-Mounted Shift Lever: An industry-first in its class, allowing for better maneuverability.
- Adjustable Trim Positions: Offers six trim positions to adapt the engine thrust to various navigation conditions.
- Through-the-Prop Exhaust: Reduces engine noise for a quieter ride.
- Environmental Compliance: Meets EPA and CARB 3-Star emission standards, ensuring low environmental impact.
Technical Specifications
- Engine Type: 4-Stroke, Twin Cylinder
- Displacement: 123 cc (7.5 cu.in.)
- Bore x Stroke: 59 x 45 mm (2.32 x 1.77 in)
- Maximum RPM Range: 5,000 - 6,000
- Starting System: Manual Recoil Starter
- Control Type: Tiller Handle
- Gear Shift: Forward - Neutral - Reverse
- Gear Ratio: 2.15:1
- Propeller Selection Range: 6" - 9"
- Transom Height: 15", 20", 25"
- Fuel Type: Unleaded Gasoline (87 Octane)
- Oil Type: NMMA Certified FC-W® 4-Stroke Oil, SAE 10W-30/40 (SF, SG, SH, SJ)
- Oil Capacity: 450 mL (15 fl. oz.)
- Fuel Tank: 1.1L (0.29 US Gal.) Integral Tank with External Fuel Tank Connector
- Alternator Output: Optional: 12V, 60W, 5A
- Cooling System: Thermostatically Controlled
- Exhaust System: Through-the-Prop
- Safety Features: Low Oil Pressure Indicator, Safety Lanyard, Start-in-Gear Protection, Over-Revolutions Limiter
Materials
- Water Pump Housing: Stainless Steel for enhanced durability.
- Engine Construction: High-grade marine aluminum alloy for superior corrosion resistance.
- Cooling System: Zinc coating on internal water passages to prevent corrosion.
Dimensions
- Length: Approximately 90 cm (35.4 inches)
- Width: Approximately 40 cm (15.7 inches)
- Height: Approximately 110 cm (43.3 inches)
Compatibility Information
This outboard motor is ideal for use with inflatable boats, tenders, and small sailboats. It is available in multiple shaft lengths (15", 20", 25") to accommodate various transom heights. Additionally, the engine can be stored in three different positions without the risk of oil spillage, providing flexibility for different storage needs.
