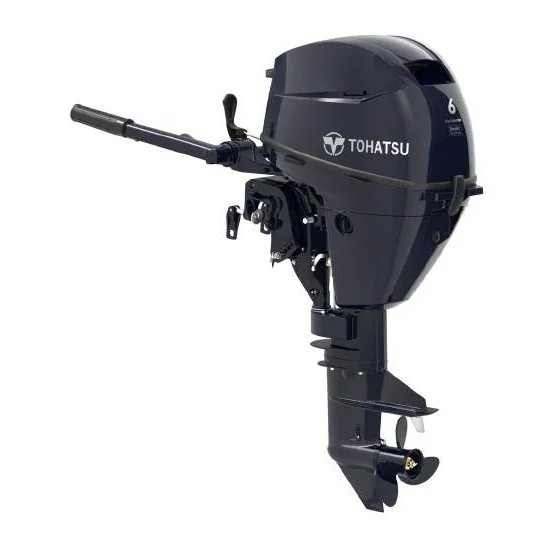

The Tohatsu MFS6D is a 4-stroke, twin-cylinder outboard motor designed to provide efficient and reliable propulsion for small boats. Equipped with Electronic Fuel Injection (EFI), it offers improved fuel efficiency and performance.
- Electronic Fuel Injection (EFI): Enhances fuel efficiency and reduces fuel consumption by up to 35% compared to traditional carburetor models.
- Increased Engine Torque: Achieves a 20% increase in engine torque over previous models, resulting in better acceleration.
- Lightweight Design: Weighs approximately 26 kg (57 lbs.), making it one of the lightest twin-cylinder engines in its class.
- Ergonomic Tiller Handle: Features a front-mounted shift lever, adjustable steering friction, and a longer tiller handle (110mm extension) for improved maneuverability.
- 3-Way Storage Positions: Allows storage in three different positions (port, front, and starboard side down) without worrying about oil spillage.
- Through-the-Prop Exhaust: Reduces engine noise for a quieter ride.
- Thermostatically Controlled Cooling System: Maintains consistent engine temperature for optimal performance.
- High-Grade Marine Aluminum Alloy Construction: Provides superior corrosion resistance and durability.
- Zinc Coating on Internal Water Passages: Enhances corrosion resistance.
- Safety Features: Includes a low oil pressure indicator, safety lanyard, start-in-gear protection, and over-rev limiter.
Technical Specifications
- Engine Type: 4-Stroke, Twin Cylinder
- Displacement: 123 cc (7.5 cu.in.)
- Bore x Stroke: 59 x 45 mm (2.32 x 1.77 in)
- Maximum RPM Range: 5,000 - 6,000
- Starting System: Manual
- Control Type: Tiller Handle
- Gear Shift: Forward - Neutral - Reverse
- Gear Ratio: 2.15:1
- Propeller Selection Range: 6" - 9"
- Transom Height: 15" (38.1 cm), 20" (50.8 cm), 25" (63.5 cm)
- Fuel Type: Unleaded Gasoline (87 Octane)
- Oil Type: NMMA Certified FC-W® 4-Stroke Oil, SAE 10W-30/40 (SF, SG, SH, SJ)
- Oil Capacity: 450 mL (15 fl. oz.)
- Fuel Tank: 12 L (3.1 US Gal.) Separate Fuel Tank
- Alternator Output: Optional: 12V, 60W, 5A
- Digital CD Ignition System: Standard
- Start-In-Gear Protection: Standard
- Thermostat Controlled Cooling System: Standard
- Through-The-Prop Exhaust: Standard
- Oil Pressure Warning: Standard
- Shallow Water Drive: Standard
Materials
- Construction: High-grade marine aluminum alloy
- Water Pump Housing Liner: Stainless steel
- Internal Water Passages: Zinc-coated for enhanced corrosion resistance
