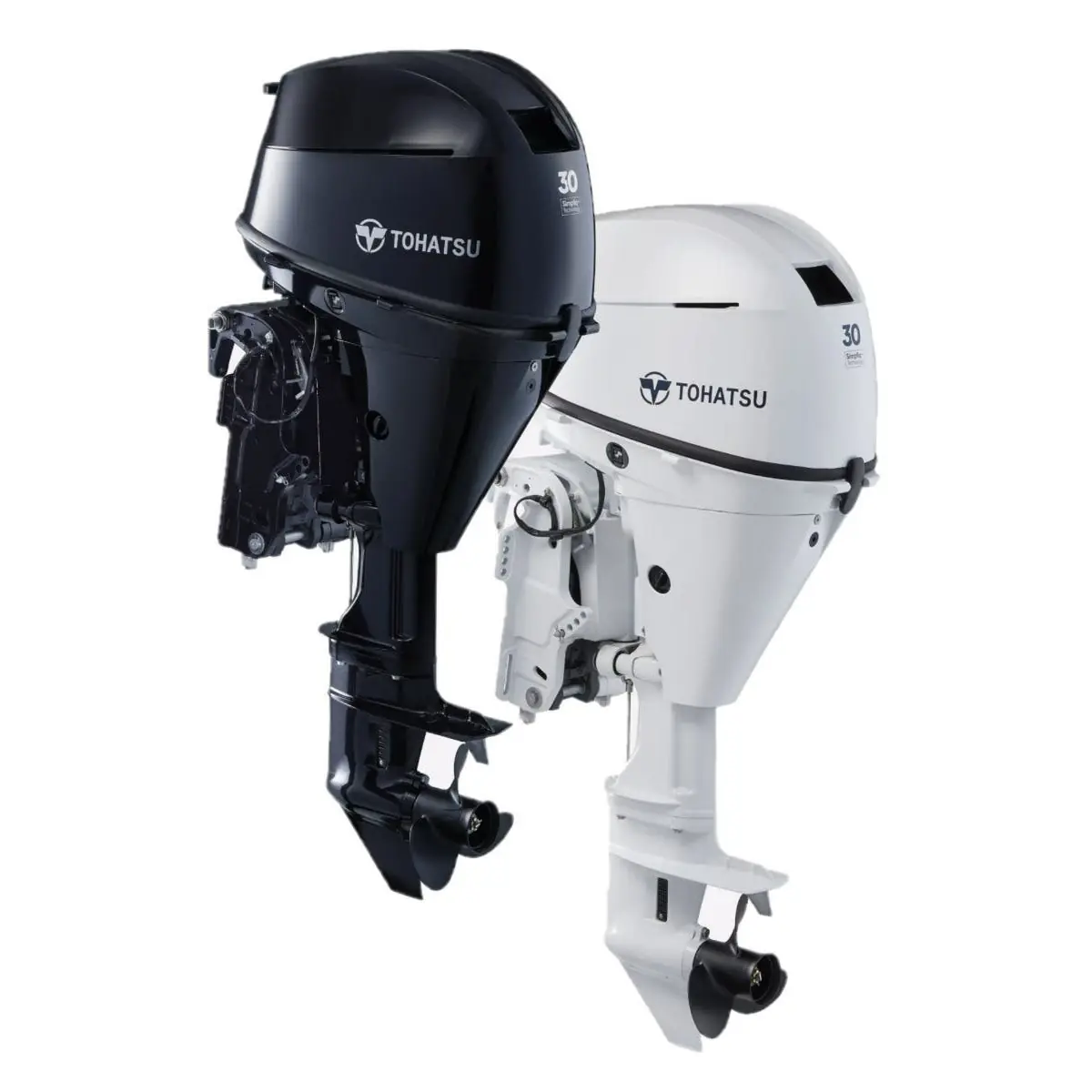

The Tohatsu 30 HP 4-Stroke Outboard Motor with Remote Control is engineered to deliver reliable and efficient performance across a wide range of boating applications, including inflatable boats, rigid inflatable boats (RIBs), aluminum fishing boats, fiberglass reinforced plastic (FRP) boats, and pontoons.
- Electronic Fuel Injection (EFI): Ensures easy starting, reduced fuel consumption, and lower emissions.
- Advanced Cross-Flow Induction: Provides smooth operation and enhanced performance.
- Optimized Gear Ratio: A 2.17:1 ratio offers improved low-end torque and the ability to turn higher-pitch propellers for better top-end performance.
- High-Output Alternator: Delivers 17.5 amps to support onboard electronics and accessories.
- Through-the-Prop Exhaust: Reduces noise and vibrations for a quieter boating experience.
- Corrosion-Resistant Construction: Built with high-grade marine aluminum alloy and zinc-coated internal water passages for superior durability.
Technical Specifications:
- Engine Type: 4-Stroke, 3-Cylinder
- Displacement: 500 cc (30.5 cu.in.)
- Bore x Stroke: 61 x 57 mm (2.4 x 2.25 in)
- Maximum RPM Range: 5,500 - 6,500
- Starting System: Electric or Manual
- Control Type: Remote Control
- Gear Shift: Forward - Neutral - Reverse
- Gear Ratio: 2.17:1 (12:26)
- Propeller Selection Range: 8" - 14"
- Transom Height: 15" (Short Shaft) or 20" (Long Shaft)
- Fuel Type: Unleaded Gasoline (87 Octane)
- Oil Type: NMMA Certified FC-W 4-Stroke Oil SAE 10W-30/40 (SF, SG, SH, SJ)
- Oil Capacity: 1.7L (1.8 qt)
- Fuel Tank Capacity: 6.6 US Gal. (25 L) Separate Fuel Tank
- Weight: 58 kg (128 lbs)
- Alternator Output: 12V, 210W, 17.5A
- Electronic Fuel Injection: Standard
- Digital CD Ignition System: Standard
- Start-In-Gear Protection: Standard
- Thermostat Controlled Cooling System: Standard
- Through-The-Prop Exhaust: Standard
- Overheat Buzzer: Standard
- Oil Pressure Warning: Standard
- Variable Idle Speed: Standard
- Shallow Water Drive: Standard
Materials:
- Construction: High-grade marine aluminum alloy
- Corrosion Protection: Zinc coating on internal water passages
Compatibility Information:
This outboard motor is suitable for a variety of boat types, including inflatable boats, RIBs, aluminum fishing boats, FRP boats, and pontoons.
