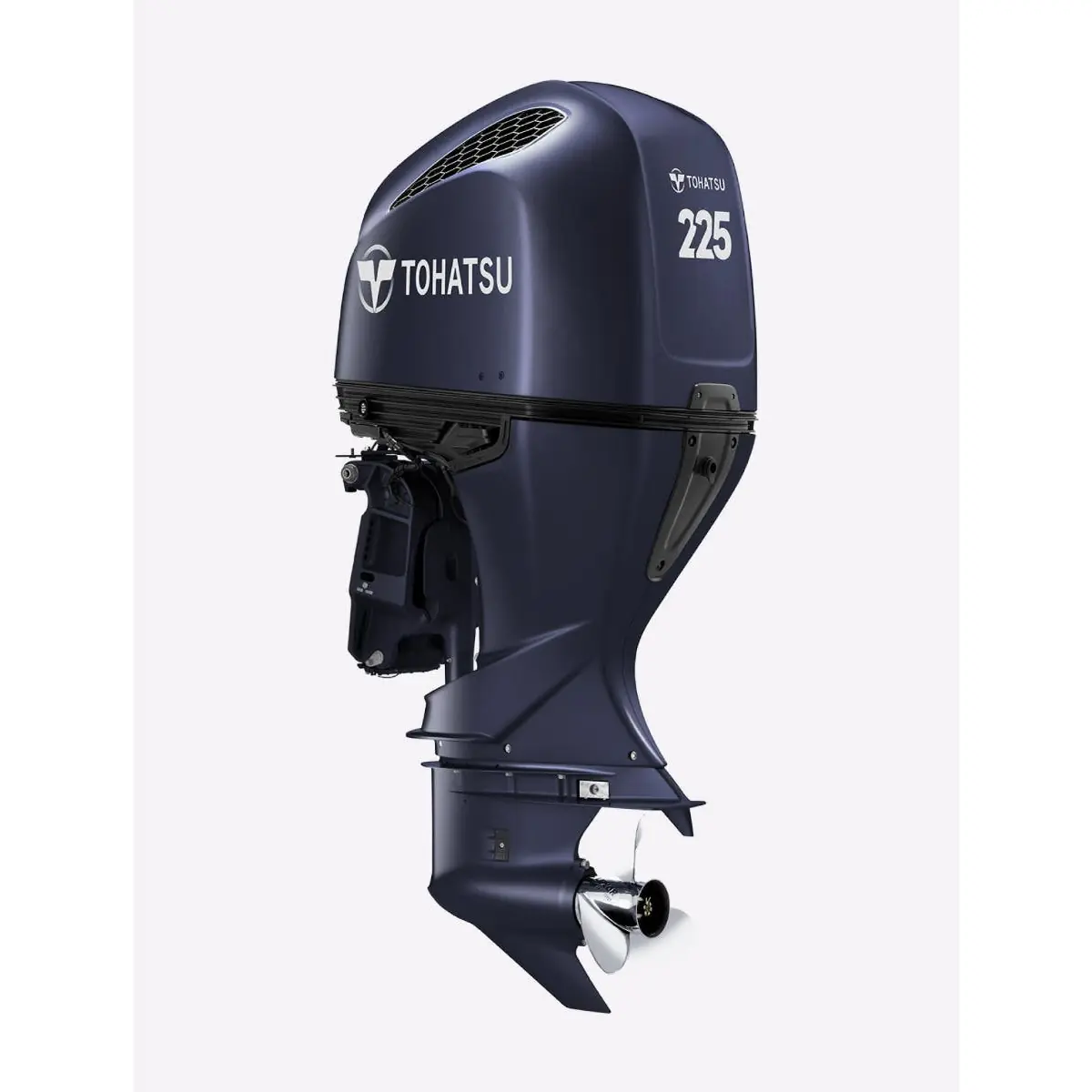

The Tohatsu BFT225D is a high-performance 4-stroke V6 outboard engine designed to deliver exceptional power, reliability, and fuel efficiency for boating enthusiasts.
- High Output Alternator: Equipped with a 90-amp alternator providing 60 charging amps, ensuring ample power for onboard electronics.
- Large Displacement V6 Engine: Features a 3.6-liter V6 engine with a narrow design that offers top performance, durability, and excellent fuel economy.
- Variable Valve Timing and Lift Control (VVT&LC): Enhances power delivery and fuel efficiency by adjusting valve timing and lift.
- Dual-Stage Induction System: Optimizes air intake to improve combustion efficiency, resulting in increased torque and fuel economy.
- Corrosion Protection: Utilizes a double-sealed multi-layered paint process and painted interior cooling passages to enhance resistance against corrosion.
- Freshwater Flushing System: Built-in system allows for easy routine flushing, extending engine life.
Technical Specifications
- Engine Type: 6-cylinder SOHC, 60° V6, 24-valve
- Displacement: 3,583 cc (218.6 cu.in.)
- Bore x Stroke: 89 x 96 mm (3.5 x 3.78 in)
- Maximum RPM Range: 5,000 - 6,000
- Starting System: Electric
- Control Type: Remote Control
- Gear Shift: Forward - Neutral - Reverse
- Gear Ratio: 2.0:1
- Ignition System: MicroComputer Programmed
- Transom Height: 20" and 25"
- Fuel: Unleaded Gasoline (87 Octane) or higher
- Oil Type: NMMA Certified FC-W® 4-stroke oil SAE 10W-30 (SF, SG, SH, SJ)
- Oil Capacity: 2.1 gal. (7.8 L) with filter
- Weight: 619 lbs. (281 kg)
- Alternator Output: 12V, 720W, 90A
- Programmed Fuel Injection: Standard
- Start-In-Gear Protection: Standard
- Thermostat Controlled Cooling System: Standard
- Through-The-Prop Exhaust: Standard
- Overheat Buzzer: Standard
- Oil Pressure Warning: Standard
- Power Trim and Tilt: Standard
- Variable Valve Timing & Lift Control: Standard
Materials
- Corrosion Protection: Double-sealed multi-layered paint process and painted interior cooling passages
- Cooling System: Thermostat controlled
Compatibility Information
The Tohatsu BFT225D is compatible with various boat models requiring a 225HP outboard engine. It is available in 20" and 25" shaft lengths, with standard and counter-rotation options to suit different boat configurations.
Warranty
The Tohatsu BFT225D comes with a 5-year limited warranty, ensuring peace of mind for the owner.
For more details, including installation and maintenance guidelines, please refer to the official Tohatsu website or contact an authorized Tohatsu dealer.
