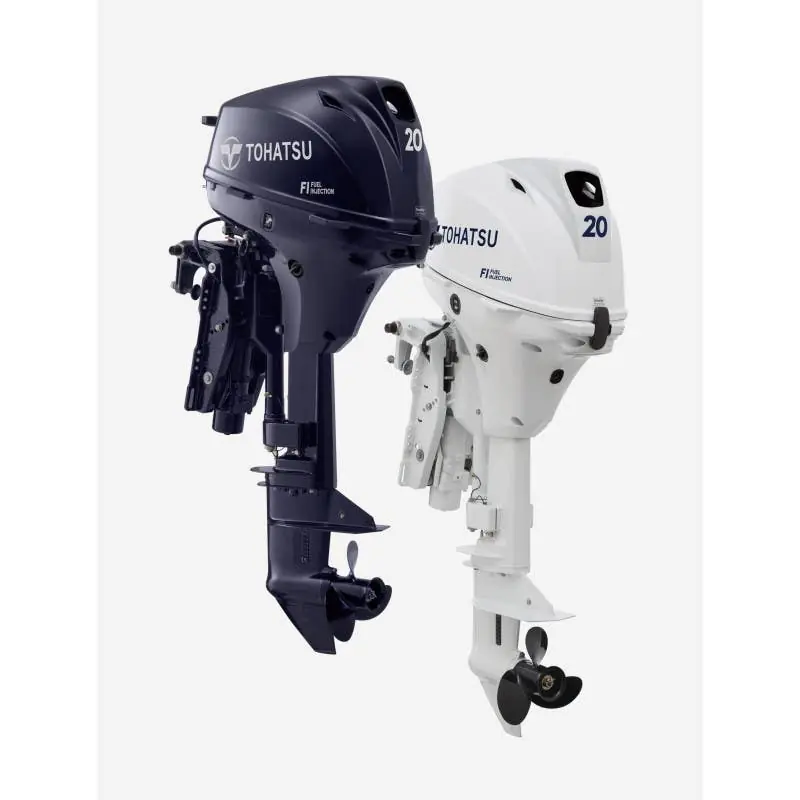

The Tohatsu 20 HP 4-Stroke Twin Cylinder Outboard Motor with Remote Control is engineered to deliver exceptional performance, reliability, and environmental responsibility for a wide range of boating activities.
- Electronic Fuel Injection (EFI): The battery-less EFI system ensures easy starting without the need for a choke, providing smooth and responsive acceleration across all RPM ranges. This technology enhances fuel efficiency, allowing for up to 50% greater distance on less fuel compared to traditional carbureted engines.
- Lightweight and Compact Design: Designed with a "Light Weight ECO Sport" development concept, this outboard motor is among the lightest in its class, facilitating easier handling and installation.
- Advanced Cooling System: Equipped with a thermostatically controlled cooling system, the engine maintains consistent operating temperatures, ensuring optimal performance and longevity.
- Enhanced Durability: Constructed with high-grade marine aluminum alloy and a stainless steel water pump housing liner, the motor offers superior protection against corrosion, extending its service life.
- Quiet Operation: The through-the-prop exhaust system significantly reduces noise levels, providing a quieter and more enjoyable boating experience.
- User-Friendly Features: The multi-function tiller handle integrates the stop switch, front shift, friction adjusting screw, and power tilt switch (on power tilt models), enhancing operational convenience.
Technical Specifications:
- Engine Type: 4-Stroke, 2 Cylinder
- Displacement: 333 cc (20.32 cu.in.)
- Bore x Stroke: 61 x 57 mm (2.40" x 2.24")
- Maximum RPM Range: 5,400 - 6,100
- Starting System: Electric or Manual
- Control System: Remote Control
- Gear Shift: Forward - Neutral - Reverse
- Gear Ratio: 2.15:1
- Propeller Selection Range: 6" - 10"
- Transom Height: 15", 20", 25"
- Fuel Type: Unleaded Gasoline (87 Octane)
- Oil Type: NMMA Certified FC-W 4-Stroke Oil SAE 10W-30/40 (SF, SG, SH, SJ)
- Oil Capacity: 1.07 qt. (1 L)
- Weight: 95 lbs. (43 kg)
- Alternator Output: 12V, 145W, 12A (Standard on Electric Start Models)
- Digital ECU Controlled Ignition System: Standard
- Start-In-Gear Protection: Standard
- Thermostat Controlled Cooling System: Standard
- Through-The-Prop Exhaust: Standard
- Oil Pressure Warning: Standard
- Shallow Water Drive: Standard
- Power Tilt: Option
Materials:
- Engine Housing: High-grade marine aluminum alloy
- Water Pump Housing Liner: Stainless steel
- Propeller: Aluminum
Dimensions:
- Length: Varies based on shaft length (15", 20", or 25")
- Width: Approximately 38.6 cm (15.2")
- Height: Approximately 106.7 cm (42")
Compatibility Information:
This outboard motor is suitable for a wide range of boats, including inflatables, fishing boats, and pontoon boats. It is available in various shaft lengths (15", 20", or 25") to accommodate different transom heights. The remote control model is compatible with standard remote control systems.
