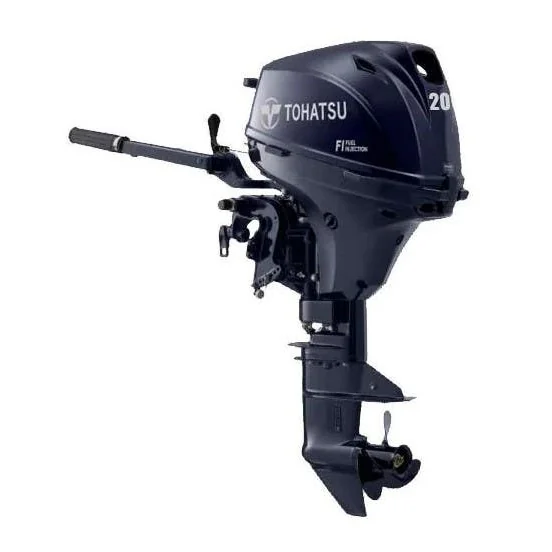

The Tohatsu 20 HP 4-Stroke Outboard Motor is engineered for exceptional performance, reliability, and environmental responsibility. Ideal for a variety of boating activities, this motor offers a blend of power and efficiency.
- Electronic Fuel Injection (EFI): Provides easy starting without a choke, smooth acceleration across all RPM ranges, and up to 50% increased fuel efficiency at full throttle.
- Lightweight and Compact Design: The motor is the lightest in its class, facilitating easier transport and installation.
- Power Tilt Feature: Available on select models, allowing for effortless tilting of the motor out of the water with the push of a button, enhancing convenience for inflatable, fishing, and pontoon boats.
- Low Emission Compliance: Meets EPA and CARB 3-Star emission standards, ensuring reduced environmental impact.
Technical Specifications
- Engine Type: 4-Stroke, 2-Cylinder
- Displacement: 333 cc
- Bore x Stroke: 61 x 57 mm
- Full Throttle RPM Range: 5,400 – 6,100 RPM
- Starting System: Electric and Manual Start options available
- Control Type: Remote Control or Tiller Handle
- Gear Shift: Forward – Neutral – Reverse
- Gear Ratio: 2.15:1
- Propeller Selection Range: 6" – 10"
- Transom Height: 20 inches (508 mm)
- Fuel Type: Unleaded Gasoline (87 Octane)
- Oil Type: NMMA Certified FC-W® 4-Stroke Oil, SAE 10W-30/40
- Oil Capacity: 1.07 qt. (1 L)
- Fuel Tank Capacity: 3.1 US Gal. (12 Lit) Separate Fuel Tank
- Weight: Approximately 95 lbs. (43 kg)
- Alternator Output: Optional: 12V, 145W, 12A (Standard on Electric Start Models)
- Cooling System: Thermostat Controlled
- Exhaust System: Through-the-Prop Exhaust
- Safety Features: Low Oil Pressure Warning, Safety Lanyard, Start-in-Gear Protection, Over-Rev Limiter
Materials
- Construction: High-grade marine aluminum alloy for superior corrosion resistance
- Water Pump Housing: Stainless steel liner for enhanced durability
- Internal Water Passages: Zinc coating for improved corrosion resistance
Dimensions
- Length: Approximately 35 inches (89 cm)
- Width: Approximately 20 inches (51 cm)
- Height: Approximately 25 inches (64 cm)
Compatibility Information
This outboard motor is suitable for a wide range of boats, including small boats, inflatable boats, and tenders. It is available in both short and long shaft lengths, with or without an electric starter, and in two colors: navy blue and beluga white. A remote control version with an included control box is also available.
Warranty
Tohatsu offers a 5-year limited warranty for non-commercial use on this outboard motor.
