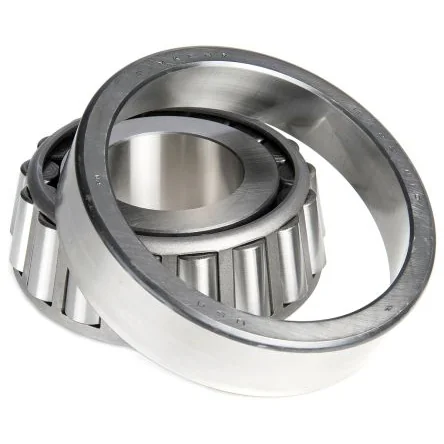

Timken LM29749/LM29710 38.1mm I.D Taper Roller Bearing, 65.08mm O.D
Durable Timken taper roller bearing designed for high load applications.
Manufacturer part number: LM29749/LM29710
Inside Diameter = 38.1mm
Outside Diameter = 65.08mm
Roller Bearing Type = Taper
Race Width = 13.97mm
Bore Type = Parallel
Material = Metal
Static Load Rating = 60300N
Cage Material = Steel
Number of Rows = 1
Roller Material = Steel
End Type = Sealed
Tapered Roller Bearings - TS (Tapered Single) Imperial/Metric. These bearings are the most basic and most widely used type of tapered roller bearings. They consist of two main separable parts, the cone (inner ring) assembly and the cup (outer ring). They are typically mounted in opposing pairs on a shaft. Features and Benefits. Imperial / Metric. One piece stamped steel cage retains rollers on the cone. Inner diameter range 7.937 mm to 863.600 mm. Outer diameter range 31.991 mm to 1060.000 mm. Single cone and cup. Product Application Information. Typical applications include, vehicle front wheels, differential and pinion configurations, conveyor rolls, machine tool spindles and trailer wheels.
