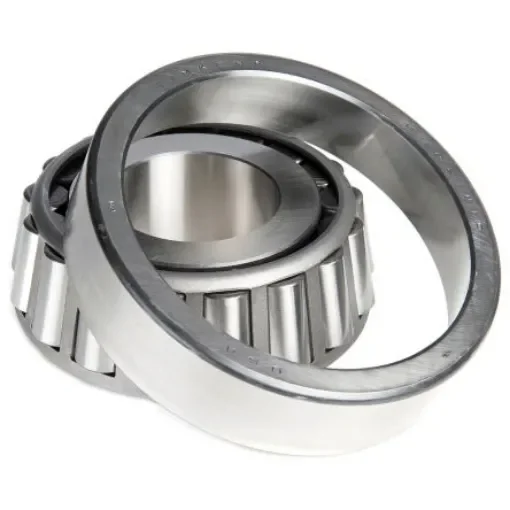

Timken HM89449/HM89410 36.51mm I.D Taper Roller Bearing, 76.2mm O.D

Inside Diameter = 36.51mm
Outside Diameter = 76.2mm
Roller Bearing Type = Taper
Race Width = 23.02mm
Bore Type = Parallel
Material = Metal
Static Load Rating = 119000N
Cage Material = Steel
Number of Rows = 1
Roller Material = Steel
End Type = Sealed

Tapered Roller Bearings - TS (Tapered Single) Imperial/Metric. These bearings are the most basic and most widely used type of tapered roller bearings. They consist of two main separable parts, the cone (inner ring) assembly and the cup (outer ring). They are typically mounted in opposing pairs on a shaft. Features and Benefits. Imperial / Metric. One piece stamped steel cage retains rollers on the cone. Inner diameter range 7.937 mm to 863.600 mm. Outer diameter range 31.991 mm to 1060.000 mm. Single cone and cup. Product Application Information. Typical applications include, vehicle front wheels, differential and pinion configurations, conveyor rolls, machine tool spindles and trailer wheels.
