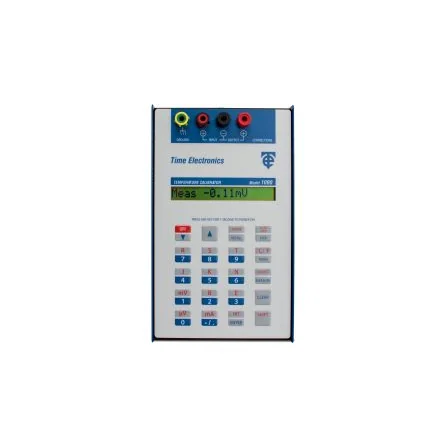

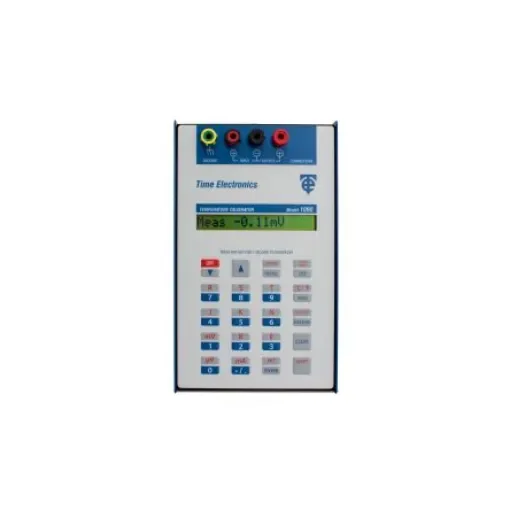

Time Electronics 1090 Temperature Calibrator

Resolution = 0.1 °C, 0.1 °F
Best Accuracy = 0.2 °C
Thermocouple Type = B, E, J, K, N, R, S, T
Temperature Scale = Centigrade, Fahrenheit
B Type Thermocouple Maximum Temperature = +1800°C
B Type Thermocouple Minimum Temperature = 110°C
E Type Thermocouple Maximum Temperature = +400°C
E Type Thermocouple Minimum Temperature = 50°C
J Type Thermocouple Maximum Temperature = 580°C
K Type Thermocouple Maximum Temperature = +750°C
K Type Thermocouple Minimum Temperature = -200°C
Model Number p = 1090
Width = 150mm

carry case and mains recharger. Pt100 simulation: 14 set values to within ±0.1% of DIN43760, -100, -50, -20, 0, 20, 50, 100, 200, 300, 400, 500, 600, 700, 800 deg C.Pt 100 Measure: 20O (-200 °C) to 350O (700 °C) accuracy:±0.5%. Temperature ; mV/mA Calibrator 1090. A high performance portable instrument combining source and measure functions for thermocouples, Pt100, mV and mA. Measures/simulates 8 thermocouple types J, K, T, R, S, B, N, E: Pt100, mV and mA Displays in selectable units in °C/°F, uV/m Large backlit super-twist LCD display, 7.5 mm digits Sealed membrane keypad Automatic or manual cold junction compensation Memory storage of frequently used values Sturdy carrying case with test lead compartment Equivalent converted uV/Pt 100 resistance can be displayed on both source ; measure Rechargeable battery 50+ hrs use. Auto power save button Auto step function with configurable step time 24V process loop drive mode
