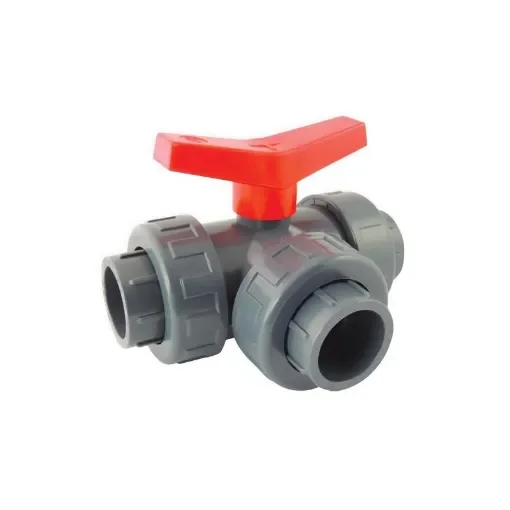

- Key Features:
- Constructed from unplasticized polyvinyl chloride (UPVC) for enhanced durability and chemical resistance.
- Available in sizes ranging from 1/2 inch (DN15) to 2 inches (DN50).
- Offers both T-port and L-port configurations to suit various flow requirements.
- Connection options include socket and threaded types, providing flexibility for different installation needs.
- Seat materials are customizable: natural rubber (NR) for pure water systems, EPDM for seawater applications, and FPM/PTFE/VITON for chemical industries requiring acid and alkali resistance.
- Designed to operate under a nominal pressure of PN10 (150 psi, 1.0 MPa).
- Technical Specifications:
- Material: UPVC body and disc.
- Size Range: 1/2 inch (DN15) to 2 inches (DN50).
- Port Type Flow Path: T-port (ABC or BAC) and L-port (CBA).
- Connection Type: Socket or threaded.
- Seat Material Options:
- NR (natural rubber) for pure water systems.
- EPDM for seawater applications.
- FPM/PTFE/VITON for chemical industries requiring acid and alkali resistance.
- Nominal Pressure: PN10 (150 psi, 1.0 MPa).
- Materials:
- Body and Disc: UPVC.
- Seat Materials: NR, EPDM, FPM/PTFE/VITON, depending on application requirements.
- Dimensions: Specific dimensions vary based on size and configuration. For detailed measurements, refer to the manufacturer's specifications.
- Compatibility Information:
- Suitable for applications in water and wastewater treatment, chemical processing, food and beverage industries, swimming pools, agriculture irrigation systems, aquariums, pharmaceutical sectors, pulp and paper industries, landfill services, and marine environments.
- Additional Details:
- The valve is designed for easy installation and maintenance, contributing to cost-effective operation.
- It is non-conductive and resistant to corrosion, ensuring longevity in various environments.
