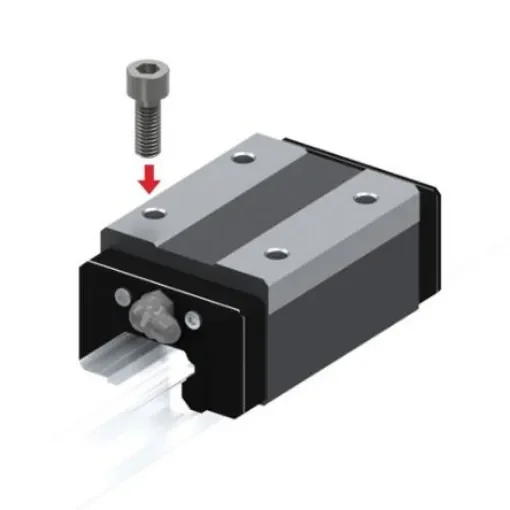

THK Linear Guide Carriage HSR30C1SS(GK), HSR

Manufacturer Series = HSR
For Rail Width = 28mm
Carriage Length = 98mm
Carriage Width = 90mm
Dynamic Load Rating = 40500N

The THK Individual linear motion guide blocks from the THK LM guide HSR series for quick and easy interchangeability, ensuring problem free maintenance and short down times.Balls travel in four precision-ground raceways on an LM rail through the LM block, and endplates incorporated in the LM block Each row of balls is placed at a contact angle of 45°so that the rated loads applied to the LM block are uniform in all four directions (radial, reverse-radial and lateral directions) for a constant low friction coefficient, and increased rigidity Blocks self-adjust enabling mounting error to be absorbed, even under a preload, for highly accurate, smooth linear motion Material carbon steel Overall height M(mm) 42
