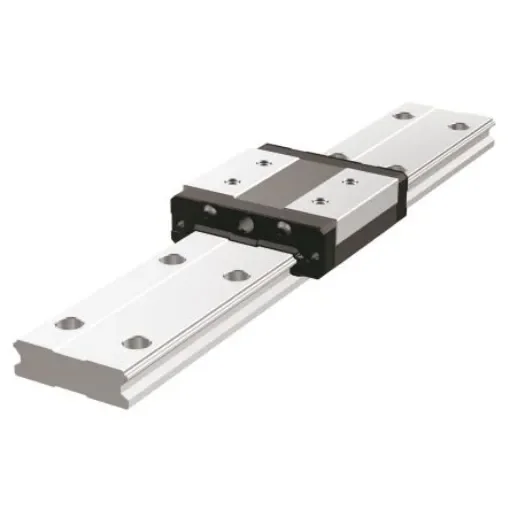

THK Linear Guide Carriage HRW21CA1UU(GK) , HRW-CA

Manufacturer Series = HRW-CA
For Rail Width = 37mm
Carriage Length = 58.8mm
Carriage Width = 68mm
Dynamic Load Rating = 6.18kN
Static Load Rating = 11.5kN

HRW-CA Linear Carriages. THK's HRW-CA linear motion carriages are ideal for applications requiring compact installation and high rigidity. The HRW-CA carriage uses a large number of balls to carry large loads and Running on 4 rows of balls with a 45° contact angle spreading loads evenly between the four trains of balls the rail and carriage can be installed to operate in any direction. Synthetic resin end plates are used to provide quiet running and smooth operation. Suitable for a diverse range of applications including NC machinery, conveyance systems and electrical discharge machinery. Wide rail design capable of handling large moments removing the need for a second rail. Low noise Compact dimension High load carrying capability
