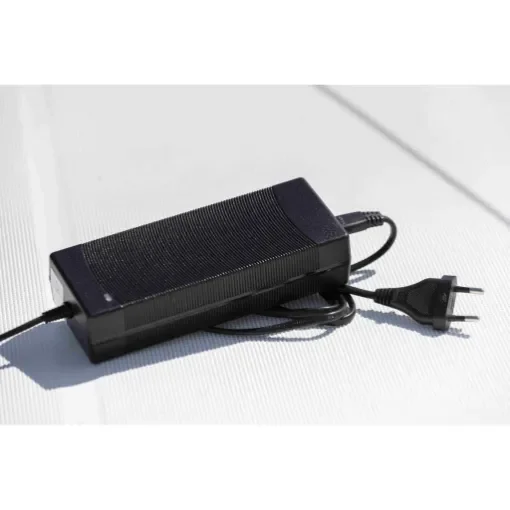

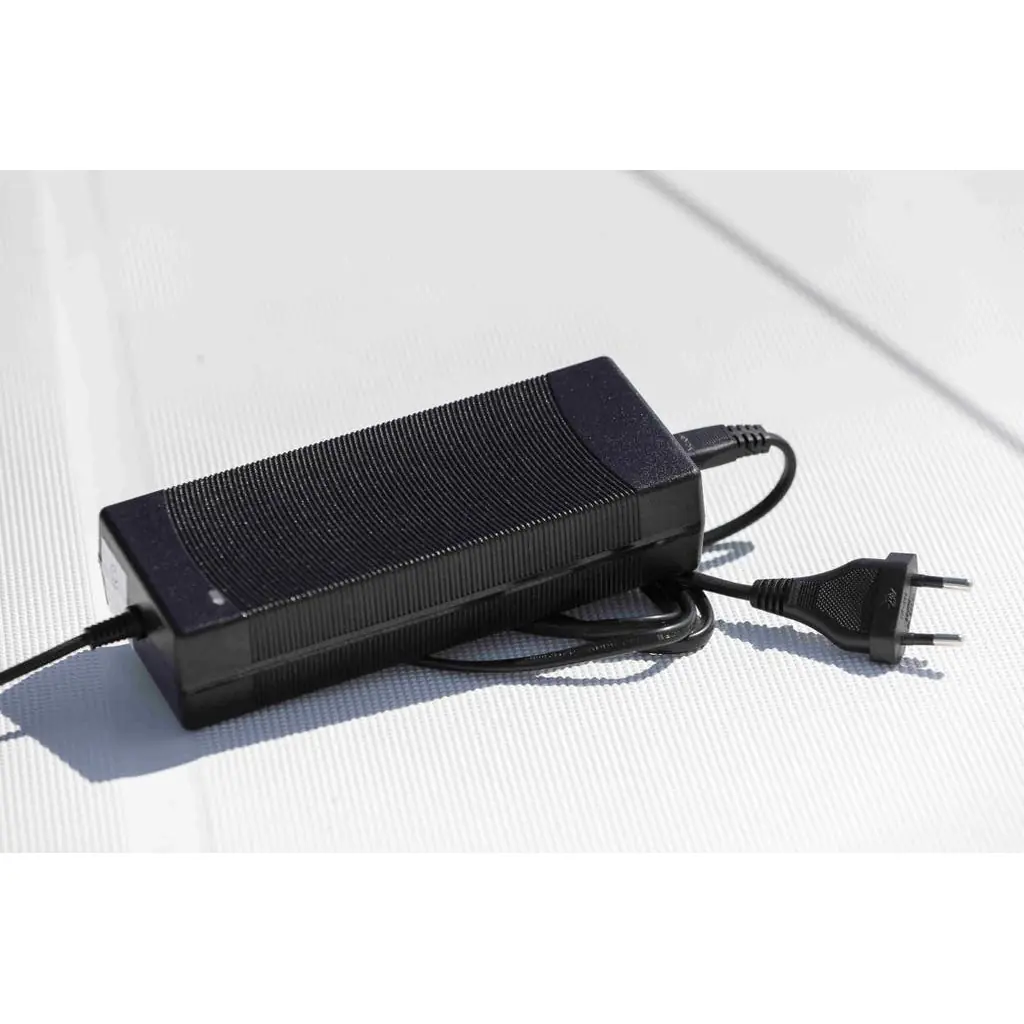

The TEMO·450 Replacement 220V Charger is specifically designed for the TEMO·450 electric outboard motor, ensuring efficient and safe recharging. This charger is included with the TEMO·450 motor upon purchase and is ideal for recharging the motor from a standard 220V mains socket.
- Efficient Charging: Fully charges the TEMO·450 battery in approximately 3 to 3.5 hours, depending on the battery's initial charge level.
- Energy Consumption: Approximately 0.37 kWh per full charge, making it cost-effective to operate.
- Waterproof Connector: The charging connector is IP67 certified, ensuring resistance to water ingress.
Technical Specifications
- Input Voltage: 110-220V AC
- Output Voltage: 29.4V DC
- Output Current: 4.0A
- Power Consumption: 116W
- Energy Consumption per Full Charge: Approximately 0.37 kWh
Materials
- Housing: Durable plastic designed to withstand marine environments
- Connectors: Corrosion-resistant materials suitable for saltwater exposure
Compatibility Information
- Compatible Motor: TEMO·450 electric outboard motor
- Charging Requirements: Suitable for use with 110-220V AC mains sockets
Usage Advice
- Ventilation: Ensure the charger is used in a well-ventilated area to prevent overheating during the charging process.
- Dry Connectors: Before connecting, verify that both the charging connector and the charger itself are dry to prevent short circuits or sparks.
- Magnetic Key: Do not connect the magnetic key during charging, as the motor gauge does not indicate the state of charge.
- Charging Completion: Upon completion of charging, the charger indicator light will change from red (charging) to green, signaling a full charge.
- Disconnection: To disconnect, first remove the plug from the mains socket, then disconnect the charger from the motor.
