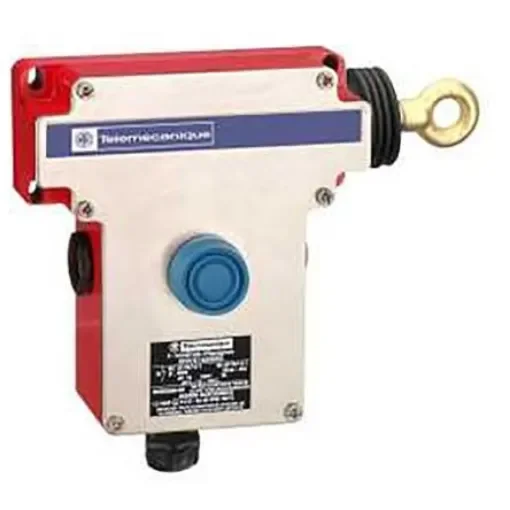

Telemecanique Sensors XY2CE Rope Pull Switch, 70m, NO/NC - XY2CE1A250EX

Normal State Configuration = NO/NC
Cable Length = 70m
IP Rating = IP66
Number of Poles = DPST
Series = XY2CE
Range = Preventa XY2
Length = 229mm
Width = 105mm
Depth = 142mm
Housing Material = Stainless Steel
Hazardous Area Certification = ATEX
Maximum AC Voltage = 240V

Telemecanique XY2CE EX ATEX Emergency Stop Rope Pull Switches. Telemecanique XY2CE EX ATEX emergency stop rope pull switches are designed to reduce the risk of injury to persons and damage either to machines or work in progress. They can be tripped by a single human action when a normal emergency stop function is not available and will also trip in the event of the tripwire breaking. Features and Benefits. Switches incorporate positive opening operation contacts, the tripping of the switch being made with positive action The switch latches in the tripped position (N/C safety contact(s) open). The function of the N/O contact is purely for signalling Incorporates a reset button, which re-closes the safety contact(s), restarting of the machine must only be achieved by manual operation of a control device within the machine start circuit, remote to the trip wire switch Recommended distance between cable supports is 15m
