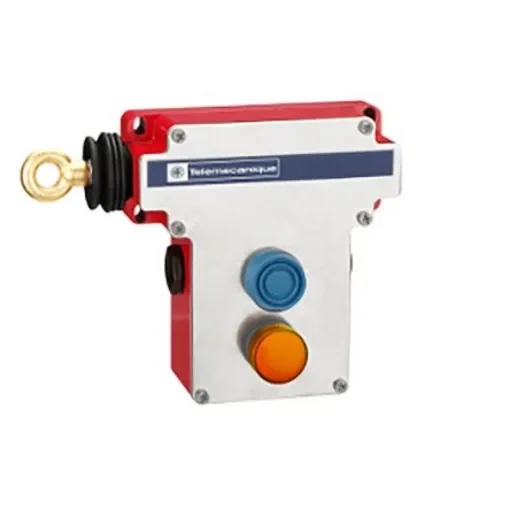

Telemecanique Sensors XY2 Rope Pull Switch, 70m, Left Side - XY2CE2A297

Cable Length = 70m
Mounting Orientation = Left Side
IP Rating = IP66
Number of Poles = 2P
Series = XY2
Range = Preventa XY2
Length = 229mm
Width = 105mm
Depth = 142mm
Maximum AC Voltage = 240V

Telemecanique Sensors Wire SwitchThe Telemecanique sensors XY2CE is 240VAC rated voltage wire switch. It has E-stop rope pull switch on left side-2NC+2NO with yellow pilot light, 230V-boot.Features and Benefits• Contact operation slow break • Cover material is stainless steel • Housing material is Zamak • Maximum rope span is 70m • Pole configuration is 2P • Range of product is preventa XY2 • Left side mounting orientation • Operating temperature ranges between -25°C and 75°CApplications• Emergency stop rope pull switch for the machines requiring stopping of a dangerous movement in the immediate vicinity of the machine • Emergency switch is used as a safety switch to stop the conveyor belt in case of an emergency • Rope pull switch for the machines requiring stopping of movement in the immediate vicinity of the machineCertifications• CCC certified • CE certified • CSA C22.2 No 14 • CSA certified • EN/IEC 60204-1 • EN/IEC 60947-5-1 • EN/IEC 60947-5-5 • EN/ISO 13850 • IP66 rated • Machinery directive 2006/42/EC • UL approved • UL508 approved • Work equipment directive 2009/104/EC
