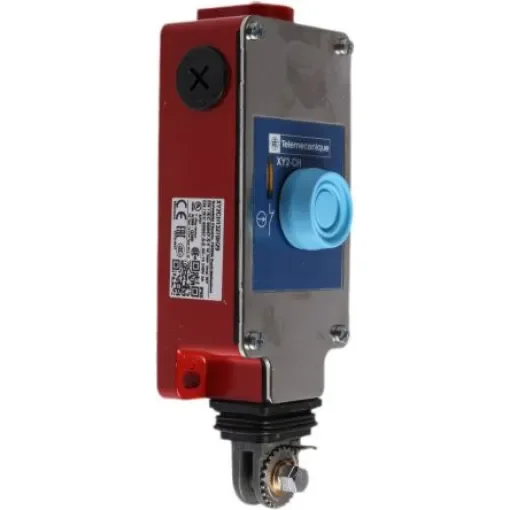

Telemecanique Sensors XY2-CH Rope Pull Switch, 15m, 2NC, Straight - XY2CH13270H29

Normal State Configuration = 2NC
Cable Length = 15m
Mounting Orientation = Straight
IP Rating = IP65
Number of Poles = DP
Series = XY2-CH
Range = Preventa
Length = 68mm
Width = 201mm
Depth = 95mm
Maximum Operating Temperature = +70°C

Telemecanique Sensors Emergency Stop Rope Pull SwitchThe Telemecanique Sensors XY2-CH-series emergency stop rope pull switch has a 2NC contact configuration. It has Zamak housing and maximum AC/DC voltage is 240VAC and 250VDC respectively and the current rating of the switch is 3A and 270mA for AC and DC respectively. This switch has a rope span of 15m and the mounting orientation is straight. Note: Manufacturer part numbers with the suffix H29 are the ISO M20 threaded cable entry version.Features and BenefitsSize of cable entry is M20 x 1.5 For machine tools, conveyers and handling applications Recommended distance between cable supports is 5m Built-in turnbuckle accessory Pushbutton reset Water and dust tight enclosure Surface mountApplicationsConveyor systems Packaging Textiles Transfer machines Presses Woodworking equipment Paint lines Test laboratoriesCertificationsUL approved CCN certified CSA certified CE certified IP65 rated
