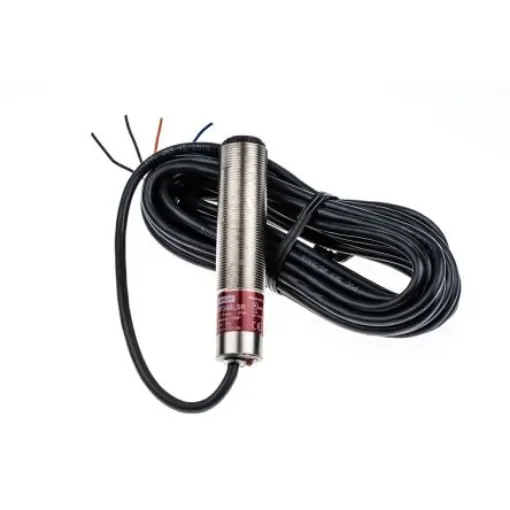

Telemecanique Sensors XU2S Series Preventa Light Beam Sender & Receiver, 1 Beam(s), 8m Max Range - XU2S18PP340L5

Range = Preventa
Series = XU2S
Component Type = Receiver, Sender
Maximum Scanning Distance = 8m
Safety Type = 2
PL EN ISO 13849-1 = c
Number of Beams = 1
Maximum Response Time = 25 ms
Terminal Type = Cable
Product Length = 120mm
Protective Height = 8m
Length = 120mm

Telemecanique Sensors Single Light BeamThe Telemecanique sensors XU2S series single light beam is a safety thru-beam pair photo-electric sensors device, constitutes a type 2 safety light curtain conforming. It has a maximum scanning distance range of 8m. Note: This product is supplied with a full installation instruction manual, which should be strictly adhered to. Particular attention should be given to section 3.5 (installation positioning and electrical inter-phasing).Features and BenefitsFlexibility allows connection of up to 4 light beam devices which can protect a zone up to 1200mm high Automatic self-checking every 5ms Built-in muting function allows the light device to be inhibited by an external sensor Single beam sensors (for muting function) available separately Ideal for transfer line applications Solid-state auxiliary output (from the module) PNP 20mA/24Vdc 2 N/O safety outputs Cable length is 5mApplicationsMachine safeguarding Mining and Quarrying Factory automation industry Pharmaceutical industry Rail and transportCertificationsIP67 rated CE certified EN/IEC 60825-1 EN/IEC 61496-1 EN/IEC 61496-2 EN/ISO 13849-1 IEC 61496-1-2 IEC 61508 EN/IEC 60068-2-27 EN/IEC 60068-2-6
