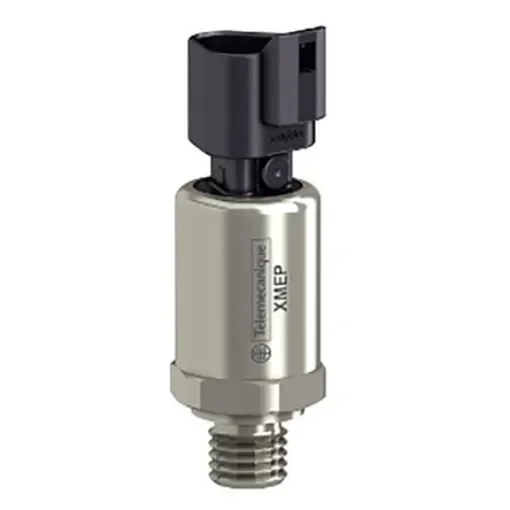

Telemecanique Sensors XMEP Series Pressure Sensor, 0bar Min, 60bar Max, Analogue Output - XMEP060BT11F

Minimum Pressure Reading = 0bar
Maximum Pressure Reading = 60bar
Accuracy = ±0.5 %
Output Type = Analogue
Media Measured = Air, Fresh Water, Hydraulic Oil
Process Connection = G1/4
Electrical Connection = 3 Pin DEUTSCH Connector DT04-3P
Response Time = <=2 ms
Maximum Current = 7 mA
Supply Voltage = 5 V dc
Housing Material = Fluorocarbon FPM, Stainless Steel AISI 316L
Maximum Operating Temperature = +100°C

Pressure transmitter - XMEP - 60 bar - G1/4A male - 0,5.4,5V - Deutsch - set 1
