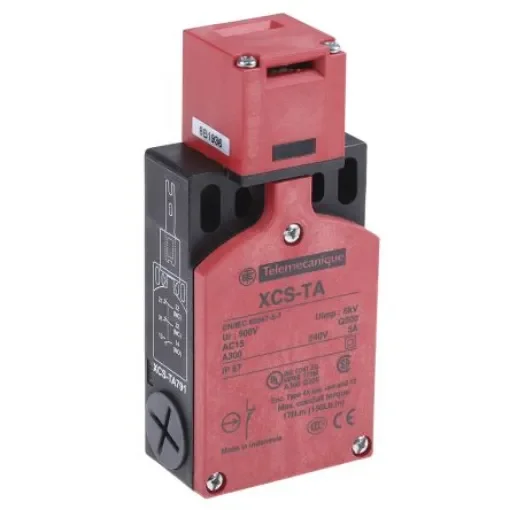

Telemecanique Sensors XCSTA Safety Interlock Switch, 2NC/1NO, Keyed, Glass Fibre Reinforced Nylon - XCSTA791

Telemecanique Sensors Rotating Hinge SwitchThe Telemecanique sensors XCSTA series interlock switch has 2NC/1NO switch configuration. It has a maximum voltage of 240VAC/250VDC and a maximum current of 6A. The housing material is glass fibre reinforced PA and it is available in a screw connection type.Features and Benefits3 positive opening contacts as standard (on guard opening) Head rotates in 90° steps giving 8 actuator entry points Minimum operating force for positive opening is 15N 2 x cable entries tapped M16 x 1.5 ISO Operating temperature ranges between -25°C and 70°CCertificationsIP67 rated EN1088 EN60204 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/ISO 12100 EN/IEC 60204-1 EN 1088/ISO 14119 UL 508
