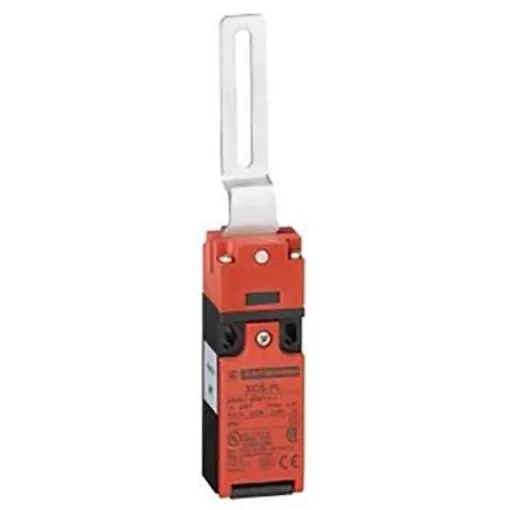

Telemecanique Sensors XCSPL Series Lever Interlock Switch, NO/NC, IP67, DP, Glass Fibre Reinforced Nylon Housing - XCSPL582

Actuator Type = Lever
Pole and Throw Configuration = DP
Normal State Configuration = NO/NC
IP Rating = IP67
Housing Material = Glass Fibre Reinforced Nylon
Connection Type = M16
Series = XCSPL
Length = 30mm
Depth = 161mm
Mechanical Life = 1000000Cycles

EN60947-5-1. XCSPL Safety Hinge Switch. Introducing the XCS PL range of Safety Switches. As far as safety is involved all dangerous machines in all sectors are involved. Such as packaging, handling, robotics, machine tools, presses and the automotive sector. Increase productivity thanks to the third contact dedicated to diagnostics. Head can be oriented in 4 directions Dimensions: H 60 x W 30 x D 30mm Operating Temperature -25 to 70°C
