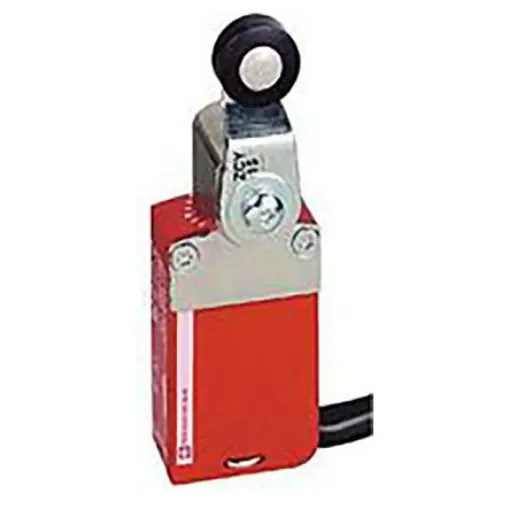

Telemecanique Sensors XCSM Series Roller Lever Interlock Switch, 2NC/1NO, IP66, IP67, IP68, 3P, Metal Housing - XCSM3715L1

Actuator Type = Roller Lever
Pole and Throw Configuration = 3P
Normal State Configuration = 2NC/1NO
IP Rating = IP66, IP67, IP68
Housing Material = Metal
Connection Type = Cable
Series = XCSM
Length = 30mm
Width = 32.4mm
Mounting Orientation = HorizontalCycles

CSA C22-2 No 14, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508. UL, CSA. With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508. XCSM Series, Safety Limit Switches. The Schneider XCSM series of miniature/compact industrial limit switches are designed for monitoring access doors and/or guards on machines with low inertia and also on machines with high inertia, when used in conjunction with actuator operated guard switches. When used on their own they are always installed in ‘positive mode ‘, but if combined in pairs then one switch in ‘positive mode ‘ and the other switch in ‘negative mode ‘. Available with a linear movement (plunger) or rotary movement (lever). N/C contacts with positive opening operation Snap action contacts Miniature/compact red metal housing, pre-cabled Plastic protective cover, secured by 5-lobe socket head safety screw Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360° Linear movement switch (plunger) has an on-end approach only IP66/67 protection in accordance with EN/IEC 60529 ROHS compliant
