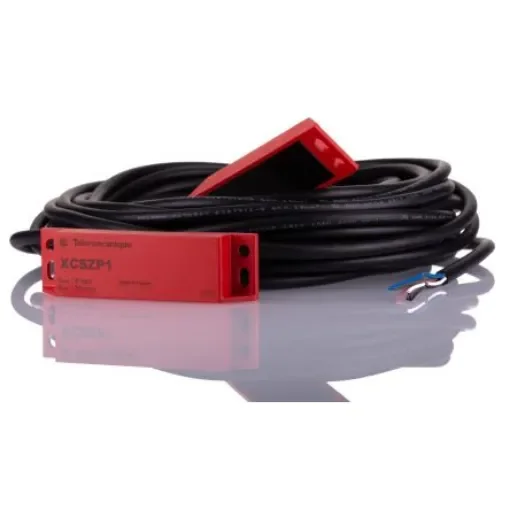

Telemecanique Sensors XCSDMP Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, 3NC/NO, 10m Cable - XCSDMP70010

Telemecanique Sensors Magnetic SwitchThe Telemecanique sensors XCSDMP series magnetic non-contact switch has 2NC/1NO switch configuration. It is designed for monitoring the doors, covers, and guards of industrial machines with imprecise guiding and low inertia. This safety switch is ideal for machines subjected to frequent washing or liquid spray. It protects the operator by instantly stopping any dangerous movement as soon as the distance between the switch and its magnet is greater than 8mm. Safety module Allows multi-switch monitoring to safety category 4 solutions per EN954-1/ISO 13849-1 XPS-DMB can monitor 2 independent sensors and modules, XPS-DME can monitor 6 independent sensors and modules 2 safety outputs and 2 solid-state outputs for signalling to the process PLC LEDs on the front face provide information on the monitoring circuit status Dimensions: H99 x W22 x D114mm IP20 protection on terminals and IP40 protection on the enclosure, per EN/IEC 60529 Note: With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.Features and BenefitsActuation on 3 sides - face-to-face and face-to-side 8mm tolerance to misalignment (5mm for XCS-DMC) LED versions have an LED in series with one N/C giving indication when guard is closed Coded reed technology - switch cannot be totally defeated by a simple magnet Rectangular plastic housingCertificationsEC 947-1 EN 547-5-1 EN 547-5-3 EN 60204-1 EN 1088 (for magnetic switch only) IEC 204-1 EN 292 EN 60204-1 EN954-1 EN1088 (for safety module only) IP67 rated BG certified CSA certified UL listed
