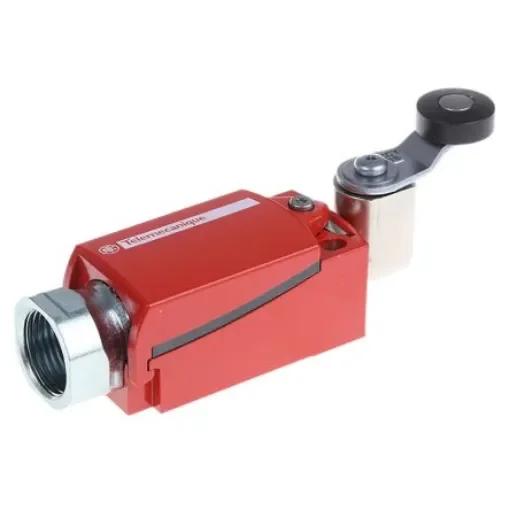

Telemecanique Sensors XCSD Series Roller Lever Interlock Switch, 2NC/1NO, 3P, Metal Housing - XCSD3918P20

Actuator Type = Roller Lever
Pole and Throw Configuration = 3P
Normal State Configuration = 2NC/1NO
Housing Material = Metal
Connection Type = Cable
Series = XCSD
Length = 122mm
Depth = 35mm
Mechanical Life = 10000000Cycles

Telemecanique Sensors Safety Limit SwitchThe Telemecanique Sensors XCSD series safety limit switch has a rotary lever actuator and 3 contacts. This switch has 1NO/2NC contact with screw connection. This switch is designed for monitoring access doors and/or guards on machines with low inertia and also on machines with high inertia, when used in conjunction with an actuator operated guard switches. When used on their own they are always installed in positive mode but if combined in pairs then one switch is in positive mode and the other switch is in negative mode. Note: With an appropriate monitoring system and correctly wired, this switch can reach safety category 4, conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.Features and BenefitsType of operator is thermoplastic roller lever Snap action operation Red metal housing Plastic protective cover, secured by 5-lobe socket head safety screw Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360° Linear movement switch (plunger) has an on-end approach only Minimum mechanical life of 10000000 cycles Cable composition is 1 entry tapped M20 x 1.5CertificationsIP66 rated IP67 rated EN/ISO13849-1 EN1088/ISO14119 EN/IEC60204-1 EN/IEC60947-5-1 UL508 approved CSAC22.2 No 14 certified CE certified
