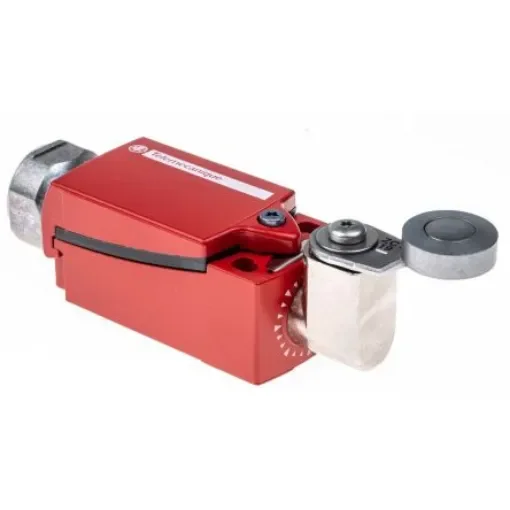

Telemecanique Sensors XCSD Series Roller Lever Interlock Switch, 2NC/1NO, 3P, Metal Housing - XCSD3719P20

Actuator Type = Roller Lever
Pole and Throw Configuration = 3P
Normal State Configuration = 2NC/1NO
Housing Material = Metal
Connection Type = Cable
Series = XCSD
Length = 122mm
Width = 34mm
Mechanical Life = 10000000Cycles

Telemecanique Sensors Safety Limit SwitchThe Telemecanique Sensors XCSD series safety limit switch has a rotary lever actuator and 3 contacts. This switch has 1NO/2NC contact with screw connection. Note: With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.Features and BenefitsSlow break, break before make contacts Red metal housing Plastic protective cover, secured by 5-lobe socket head safety screw Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360° Linear movement switch (plunger) has an on-end approach only Minimum mechanical life of 10000000 cycles Cable composition is 1 entry tapped M20 x 1.5CertificationsIP66 rated IP67 rated EN/ISO13849-1 EN1088/ISO14119 EN/IEC60204-1 EN/IEC60947-5-1 UL508 approved CSAC22.2 No 14 certified CE certified
