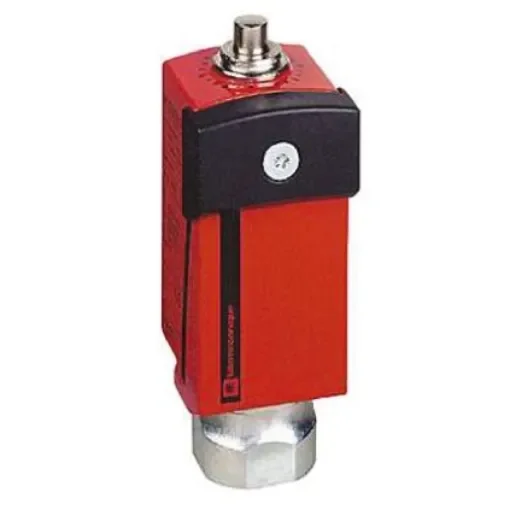

Telemecanique Sensors XCSD Series Plunger Limit Switch, 2NC/1NO, 3P, Metal Housing - XCSD3910P20

Actuator Type = Plunger
Pole and Throw Configuration = 3P
Normal State Configuration = 2NC/1NO
Housing Material = Metal
Connection Type = M20
Series = XCSD
Length = 89mm
Width = 34mm
Mechanical Life = 15000000Cycles

CSA C22-2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508. UL, CSA. With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508. XCSD Series, Safety Limit Switches. The Schneider XCSD series of compact industrial limit switches are designed for monitoring access doors and/or guards on machines with low inertia and also on machines with high inertia, when used in conjunction with actuator operated guard switches. When used on their own they are always installed in ‘positive mode ‘, but if combined in pairs then one switch in ‘positive mode ‘ and the other switch in ‘negative mode ‘. Available with a linear movement (plunger) or rotary movement (lever). N/C contacts with positive opening operation Slow break, break before make contacts Red metal housing One tapped M20x1.5 cable entry Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360° Linear movement switch (plunger) has an on-end approach only IP66/67 protection in accordance with EN/IEC 60529 ROHS compliant
