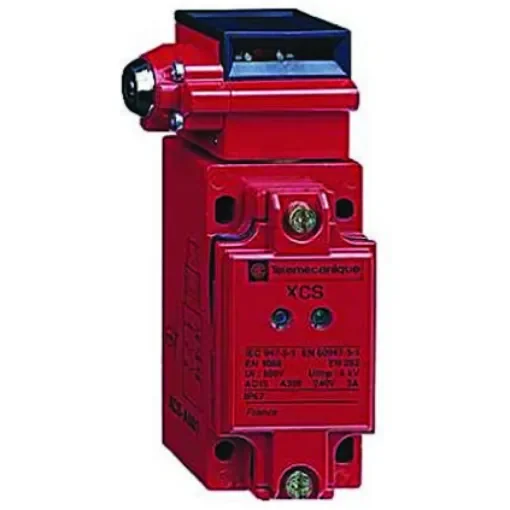

Telemecanique Sensors XCSB Solenoid Interlock Switch, 2NC/1NO Actuator Included, Zinc Alloy - XCSB702

Maximum AC Voltage = 240V
Maximum DC Voltage = 250V
Housing Material = Zinc Alloy
Range = Preventa
IP Rating = IP67
Series = XCSB
Depth = 44mm

IEC 60947, EN 292, EN 60204, EN 1088. UL, CSA. With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508. XCSB Safety Interlock Switch. The Schneider XCSB series is an industrial safety interlock switch with manual locking and unlocking of the actuator via a pushbutton. The XCSB offers protection of operators by stopping the machine when the actuator (attached to the machine guard) is withdrawn from the head of the safety switch. It has a red metal housing with a key operated turret head and one tapped M20x1.5 cable entry. Features. ;ul> ;li>3 safety contacts, slow-break, break before make ;/li> ;li>Manual unlocking via pushbutton ;/li> ;li>Metal body ;/li> ;li>Drive head can be moved 90° in each direction ;/li> ;li>8 possibilities for inserting the actuating key ;/li> ;li>20 N minimum force for positive opening ;/li> ;li>IP67 protection in accordance with EN/IEC 60529 and EN/IEC 60947-5-1 ;/li> ;li>4 different actuator keys available, please order separately ;/li> ;/ul>
