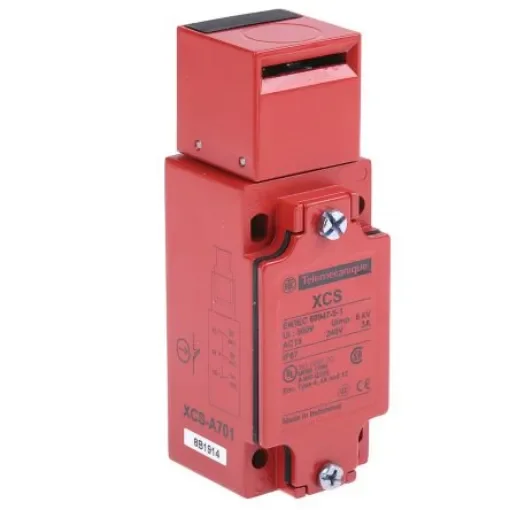

Telemecanique Sensors XCSA Safety Interlock Switch, 2NC/1NO, Keyed, Zinc Alloy - XCSA701

Lock Style = Keyed
Normal State Configuration = 2NC/1NO
Safety Contacts = NO/2NC
Maximum AC Voltage = 240V
Maximum DC Voltage = 250V
Connection Type = PG13
Housing Material = Zinc Alloy
Range = Preventa
IP Rating = IP67
Number of Head Directions = 8
Series = XCSA
Depth = 44mm

Telemecanique Sensors Rotating Hinge SwitchThe Telemecanique sensors XCSA series interlock switch has 2NC/1NO switch configuration. It has a maximum voltage of 240VAC/250VDC and a maximum current of 6A. The housing material is zamak and it is available in a screw connection type.Features and Benefits3 positive opening contacts as standard (on guard opening) Key operated lock enables positive locking of the guard Optional version with orange LED to indicate guard open/closed Heavy duty metal DIN style Turret heads can be rotated through 360° in 90 steps 8 actuator entries and 1 tapped entry 20N minimum operating force for positive opening Productivity is increased due to the third contact dedicated to diagnostics Operating temperature ranges between -25°C and 70°CCertificationsIP67 rated EN1088 EN60204 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/ISO 12100 EN/IEC 60204-1 EN 1088/ISO 14119 UL 508
