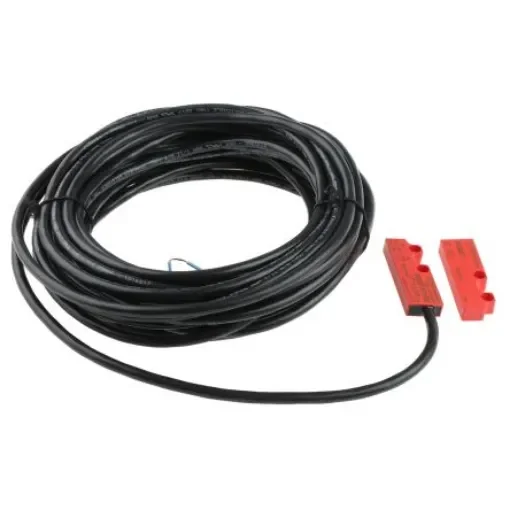

Telemecanique Sensors XCS-DMC Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, 2NC, 10m Cable - XCSDMC79010EX

Telemecanique Sensors Magnetic Safety SwitchThe Telemecanique Sensors XCS-DMC series magnetic safety switch has 5mm tolerance to misalignment. This means that it can protect the operator by immediately stopping any dangerous movement as soon as the distance between the switch and its magnet is greater than 5mm. The actuator is coded and included in the switch. It is designed for monitoring the doors, covers and guards of industrial machines with an imprecise guiding and low inertia. This safety switch is ideally suited for machines subjected to frequent washing or liquid spray. This switch has 2 normally closed contacts. Ex coded magnetic safety switches can be used in potentially explosive dusty or gaseous environments for safety applications. Note: With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508. Standards.Features and BenefitsActuation on 3 sides: face to face and face to side Coded reed technology -switch cannot be totally defeated by a simple magnet Rectangular plastic housing Operating temperature ranges between -250C and 850C Maximum mechanical life 1200000 cyclesApplicationsMachines fitted with small guards Covers (with loose alignment) Packaging machines Food and beverage processing Petrochemical plantsCertificationsIP66 rated IP67 rated EN1088 EN/IEC60204-1 EN/IEC60947-5-1 EN/ISO12100 ISO14119 UL508 CSAC22.2 No 14 BG certified
