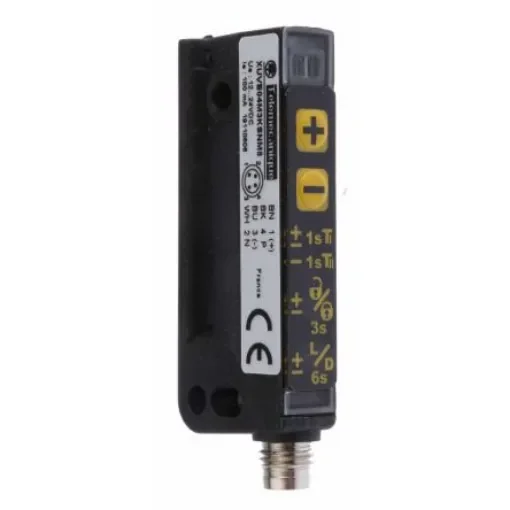

Telemecanique Sensors Through Beam Photoelectric Sensor, Fork Sensor, 3 mm Detection Range - XUVE04M3KSNM8
Achieve accurate label detection with the Telemecanique Through Beam Fork Sensor, featuring a 3mm range.
Manufacturer part number: XUVE04M3KSNM8
GTIN: 3389119056465
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Sensor Style = Fork
Detection Type = Through Beam
Detection Range = 3 mm
Output Type = NPN/PNP
Electrical Connection = M8 4 Pin Connector
Maximum DC Voltage = 24V
Light Source = Infrared
IP Rating = IP65
Maximum Current = 100 mA
Response Time = 50 µs
Minimum Operating Temperature = -20°C
CE, cULus. XUVE Optical Fork Sensors. XUVE optical fork sensors for detection of opaque labels. Solid-state output Adjustment by numeric potentiometer (+/- buttons) and red LED Minimum length of label and minimum distance between two labels: 2 mm Detection accuracy: +/- 50 µm at 150 m/min Indicator lights: Output state Yellow LED, Adjustment and keypad locking Red LED Depth: 40 mm IP Rating: IP65
