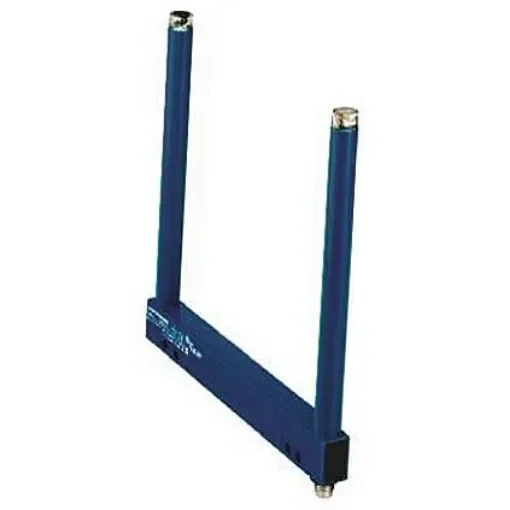

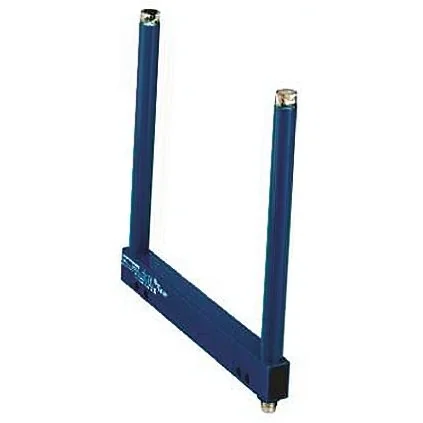

Telemecanique Sensors Through Beam Photoelectric Sensor, Fork Sensor, 120 mm Detection Range - XUVR1212PANM8

Sensor Style = Fork
Detection Type = Through Beam
Detection Range = 120 mm
Output Type = PNP
Electrical Connection = M8 3 Pin Connector
Maximum DC Voltage = 24V
Light Source = LED
IP Rating = IP65, IP67
Maximum Current = 100 mA
Maximum Operating Temperature = +60°C

CE, UL, CSA. Photoelectric Fork Sensors. Frame or fork style sensors which can detect the position or the passage of small parts, marks on transparent material, label presence and material edges. A robust and cost efficient alternative to fibre optics and ultra-miniature through-beam solutions. Robust painted aluminium casing Visible red light beam simplifies set-up M8 threaded output connection - lead not supplied LED output indication Accurate - smallest detected object 0.6mm High degree of protection (IP65 and IP67) Suitable for packaging machines, conveyors and labelling machines
